ROUGH COUNTRY 7 INCH STAMPED STEEL LCA LIFT KIT FORGED UCA | BRACKET | CHEVY/GMC 1500 (16-18)

RC-11633
Pricing: $1,574.95

Customize Your Item

- Select Configuration -
 * required
Qty:
Free Shipping

Description

Superior Lift Solution. Looking to add some serious attitude to your 2016-2018 GM 1500? Rough Country's 7-Inch Lift Kit is just what you need. This lift kit gives your gm a meaner, lifted, and level stance while providing a smooth ride for unmatched highway and trail performance. It also adds room for larger wheels and tires, so you can make your truck stand out from the crowd. With excellent ride quality and handling characteristics on the road, this lift kit is the perfect way to take your GM to the next level.

Innovative Design and Construction. When changing a vehicle's suspension, the key to preserving ride quality is keeping the geometry of all suspension components as close to their factory angles as possible.This suspension kit combines the use of durable control arm brackets, differential brackets, and drop cross members to reduce cv angles and simulate factory angles all while achieving new heights. Featuring a set of replacement struts that offer uncompromised strength and rigidity, gaining lift height is no issue. Completing the rear of this suspension kit is a set of rear blocks, shocks, and u-bolts that allow you to retain factory-like geometry. This combined setup provides enough clearance to run 35" tires without additional modifications. We didn't want to limit you to one standard kit. Rough Country's 7-inch kit is configurable with all the shock options that we offer. This allows you to choose which shock series you want! Ranging from our nitrogen-charged N3 shocks to our Vertex reservoir shocks the power to choose is in your hands. Our 7-inch kit features a set of high-quality, Forged Aluminum Upper Control Arms designed to make alignment adjustments easier and Clevite rubber bushings for enhanced durability. These arms are designed to promote a factory-like geometry by keeping the ball joint at optimum angles after lifting. This design allows for an improved, greater range of motion from the ball joint, with less stress, wear and tear.

Installation. Requiring cutting and grinding required to install, an estimated timeframe of 8-10 hours is recommended to complete this full installation. This full kit can be installed at home and can be completed efficiently and quickly!

Limited Lifetime Replacement Warranty. Rough Country's 7" Suspension Lift Kit is backed with a limited lifetime replacement warranty towards manufacturer defects. As such, the product is protected from structural and workmanship damage after the date of purchase. With our industry-leading warranty give yourself peace of mind when using Rough Country's Suspension products!

FEATURES

    • Increased ground clearance.
    • Maintains stock track width.
    • Can run factory 20-inch wheels.
    • Fabricated blocks are stronger and offer a longer lifespan than cast blocks.
    • Specially designed anti-axle wrap rear blocks maintain stock ride quality while eliminating common lift block problem.

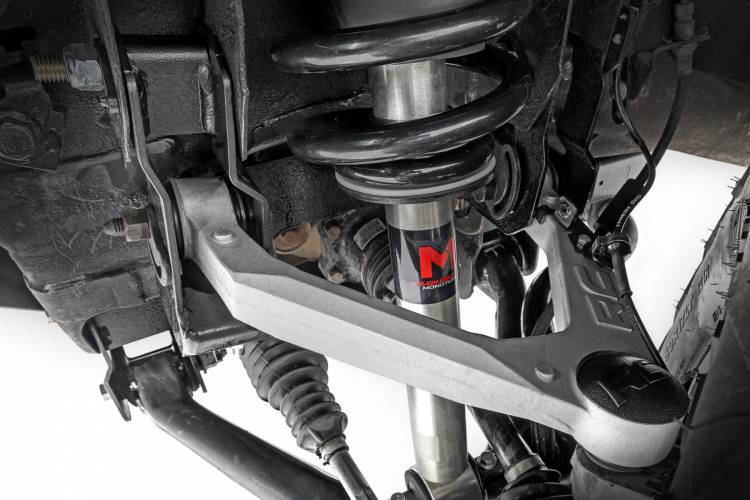

    • Control arms are made of forged aluminum for unsurpassed strength and durability.
    • No welding weak spots.
    • Offers more ball joint articulation over factory.
    • Includes POM ball joints for greater range of motion and easier installation.
    • Ball joints are fully greaseable.
    • Includes clevite brand OEM style rubber bushings.



OPTIONAL N3 LOADED STRUTS



  • Includes pre-loaded coil.
  • Maintains smooth, factory-like ride.
  • Increased ground clearance.
  • Engineered for lifted applications.
  • Infinitely Variable Damping.
  • Leak-proof piston seal.
  • Massive 1 3/8in Bore.
  • Silver powder coat finish.
  • 3-year Manufacturer's Warranty.





OPTIONAL M1 MONOTUBE STRUTS



  • 2-inch seamless extruded tube.
  • 46mm digressive piston.
  • Digressive valving.
  • 46mm digressive piston.
  • Fast heat dissipation.
  • Fade-free performance
  • Natural rubber bushings.
  • Zinc plated aluminum body.
  • 3-year Manufacturer's Warranty.

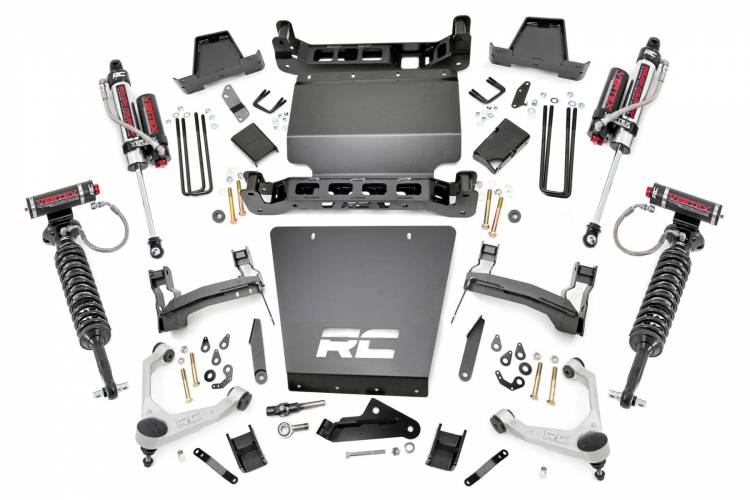

OPTIONAL VERTEX COILOVERS



  • 8-Stage Adjustable Damping.
  • Monotube Design.
  • Nitrogen-charged.
  • Massive 2.5in Piston.
  • 22mm Chrome-Hardened Piston Rod.
  • 3-Stage Seal System.
  • Heat-Treated, Alloy Bearing.
  • Honed Steel Body.
  • 3-year Manufacturer's Warranty.



NOTES - IMPORTANT

  • Requires minor cutting and drilling.
  • ONLY fits models with stamped steel control arms.
  • Does NOT fit Hybrid eAssist models.
  • Does NOT fit GMC Denali models with Magnetic Ride Control.
  • IMPORTANT! - Installation of larger tires will require a Rough Country Speedometer Calibrator 90009T.
  • If truck is equipped with a mass damper on the front differential, the damper must be removed.

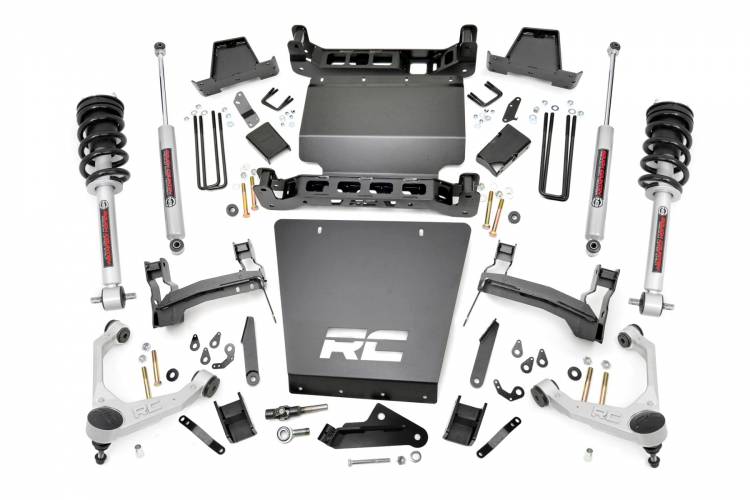

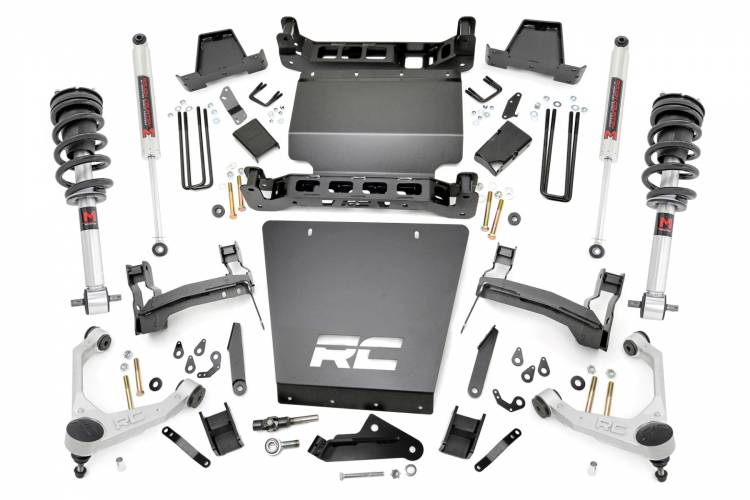

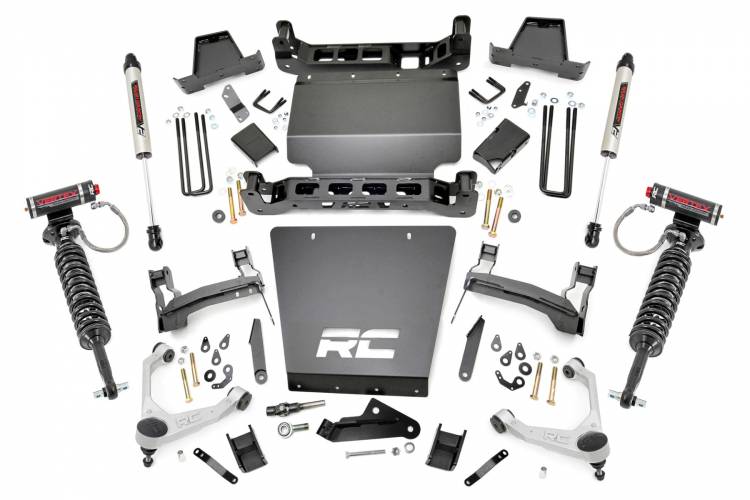

FRONT
  • (2) Premium N3 Series Lifted Struts
  • Front Crossmember
  • Rear Crossmember
  • Control Arm Drop brackets
  • Forged Upper Control Arms
  • Differential Drop Brackets
  • Sway-bar Drop Brackets
  • Steering Extension
  • Steering Brace
  • Front Skid Plate
  • Lower Skid Plate
  • Hardware
REAR
  • Fabricated Anti-Wrap Lift Blocks
  • Brake Line Relocation Brackets
  • U-bolts
  • Hardware
SHOCKS
  • (2) Premium N3 Shock Absorbers
Est. Install Time 8-10 hours
2016-2018 4WD Chevy Silverado 1500
2016-2018 4WD GMC Sierra 1500
295/70R18 Factory 18 6x5.5 - 0.25 Spacer
295/60R20 Factory 20 6x5.5 - 0.25 Spacer
315/70R17 17x9 6x5.5 +12 -
35x12.50R17 17x9 6x5.5 +18 -
315/70R17 17x9 6x5.5 +18 -
285/75R18 18x9 6x5.5 +12 -
35x12.50R18 18x9 6x5.5 +18 -
285/75R18 18x9 6x5.5 +18 -
35x12.50R18 18x9 6x5.5 +19 -
35x12.50R18 18x9 6x5.5 +20 -
35x12.50R20 20x9 6x5.5 +12 -
35x12.50R20 20x9 6x5.5 +18 -
295/60R20 20x9 6x5.5 +18 -
35x12.50R20 20x9 6x5.5 +20 -
295/60R20 20x9 6x5.5 +20 -
