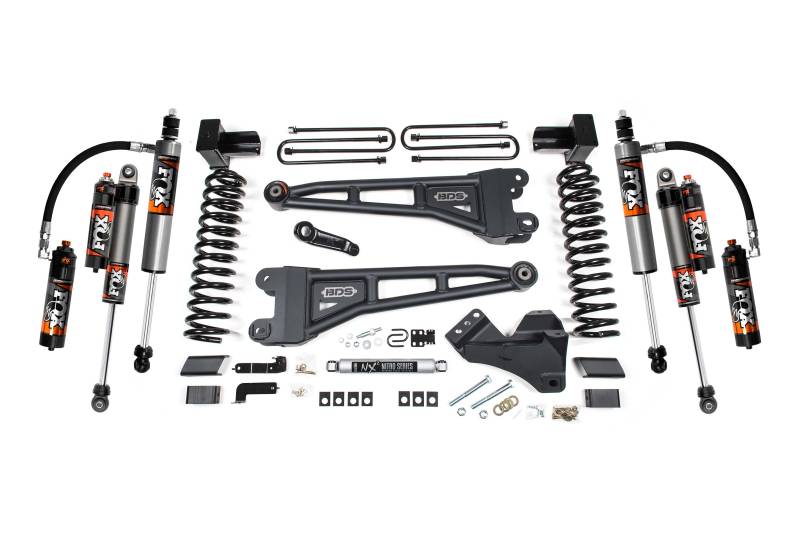

BDS 5" Performance Elite Radius Arm Lift Kit for 2023 Ford F250/F350 Super Duty 4WD

Next level performance for your Super Duty with this 5" radius arm lift kit with FOX Performance Elite shocks.

These kits are designed to improve performance and capability offroad while retaining great on-road handling. This kit builds on the stout BDS radius arm design and dual rate coil springs combined with FOX 2.5 Performance Elite (PE) shocks. These aluminum bodied shocks offer improved damper performance, better heat dispersion and easy tuning via the DSC (dual speed compression) adjusters located on the reservoir allowing you to dial in the high-speed and low-speed compression settings.

The foundation for this kit is the tried-and-true BDS radius arm lift kit that utilizes high strength tubular gusseted radius arms to correction front axle positioning, add strength and increase ground clearance. The kit also includes steering correction with a forged drop pitman arm along with a HD track bar bracket. Sway bar and brake line relocation brackets are utilized along with bump stop extensions. Fox 2.5" Performance Elite shocks and your choice of rear lift solutions to lift and level out the stance in the rear as well as dampen the harshest enviroments. BDS designs this kit as a complete solution to transform your Super Duty to tame the any terrain.

Important Kit Notes

• 1. Ford recommends replacement of the pitman arm nut after each time it has been removed.
• 2. Use a small pitman arm puller to remove the drag link joint and steering stabilizer taper.
• 3. If your truck is equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required: BDS123402.
• 4. Due to taller factory ride height, Tremor models will not net full advertised lift height. Final ride height will be the same as standard models.
• 5. Larger tires on stock wheel are not recommended due to interference with brake line, radius arm and sway bar. Use recommended specs listed in wheel and tire fitment section.
• 6. Minor trimming may be necessary for clearance of 37x12.50 tires on certain wheel setups.
• 7. Installation requires a torque wrench capable of 406 ft-lbs.
• 8. Trucks without top mounted overload springs will require (4) UBT4028.

Take your Super Duty to the next level with BDS and FOX.

• Tire & Wheel Combinations
• 37" x 12.50 w/17 x 9 and 4.5-5" back spacing
• 37" x 12.50 w/18 x 9 and 4.5-5" back spacing
• 37" x 12.50 w/20 x 9 and back spacing

*Trimming may be required*

• Est. Installation: 4-5 hours
• Difficulty Level (easy 1 - 5 complicated): 3

Vehicle Fitment Information

• 2023 Ford F250/F350 Super Duty 4WD

BDS Suspension Lift Kit Warranty

All BDS Suspension lift kits come with the security of knowing you purchased the finest lift kit in the aftermarket suspension industry. We back our commitment to engineering reliable, quality 4x4 off-road Jeep and truck suspension products with our unique "No BS Hardcore Lifetime Warranty".

If you are the original purchaser of any BDS lift kit and it breaks, we will give you a new part. Period.
