ROUGH COUNTRY 6 INCH LIFT KIT FORD SUPER DUTY 4WD (2023)

RC-43730
Pricing: $1,099.95

Customize Your Item

- AXLE DIAMETER -
 * required
- FACTORY OVERLOADS -
 * required
- INCLUDE FRONT DRIVESHAFT -
 * required
- SHOCKS -
 * required
Qty:
Free Shipping

Description

Superior Ride Quality. Take your 2023 Ford Super Duty to new heights with Rough Country's 6-inch Radius Arm Drop Suspension Lift! This all-inclusive kit comes with everything you need for a total transformation of your truck. Run up to 37in tires while preserving the smooth, factory ride quality with this impressive upgrade.

Durable Components. When changing a vehicle's suspension, the key to preserving ride quality is keeping the geometry of all suspension components as close to their factory angles as possible. Rough Country's new 6-inch Suspension Lift features a set of ultra-durable radius arms drop brackets, precision fit to bolt right into the factory mounts for an easier install and a more factory-like angle.

Installation. Requiring cutting and drilling to install, an estimated timeframe of 6-10 hours is recommended to complete this full installation. This full kit can be installed at home and can be completed efficiently and quickly!

Limited Lifetime Replacement Warranty. Rough Country's 6-inch Suspension Lift Kit is backed with a limited lifetime replacement warranty towards manufacturer defects. As such, the product is protected from structural and workmanship damage after the date of purchase. With our industry-leading warranty give yourself peace of mind when using Rough Country's Suspension products!

FEATURES

  • Easy bolt-on installation.
  • Increased ground clearance.
  • Levels the front with the rear of the vehicle.
  • Radius arm drop brackets allow for properly set caster. Proper caster is crucial to maintaining factory handling and driveability.
  • Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.
  • Fabricated blocks are stronger and offer a longer lifespan than cast blocks.
  • Specially designed anti-axle wrap rear blocks maintain stock ride quality while eliminating common lift block problem.

NOTES - IMPORTANT

  • Models equipped with a 10-speed transmission must remove dial pin.
  • Does NOT fit gas engine models.
  • Does NOT fit manual shift transfer cases.
  • Does NOT fit dually models.
  • Does NOT work on models equipped with Tremor Factory Trim Package.
  • Does NOT fit models equipped with LED Projector headlights / Auto Leveling Headlight Function.

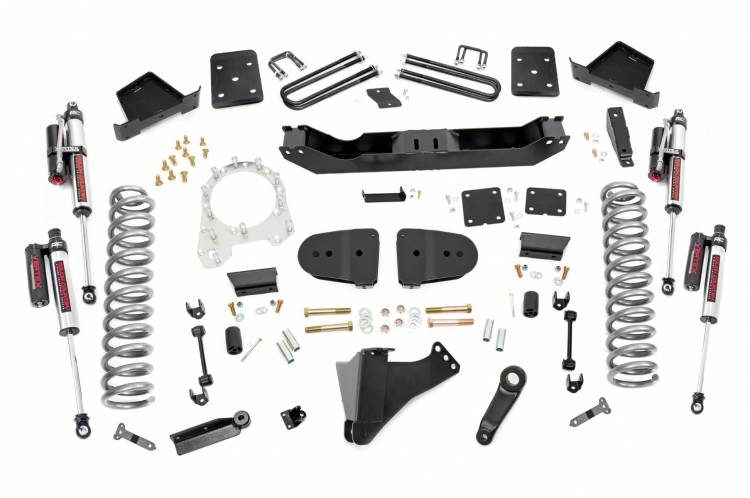

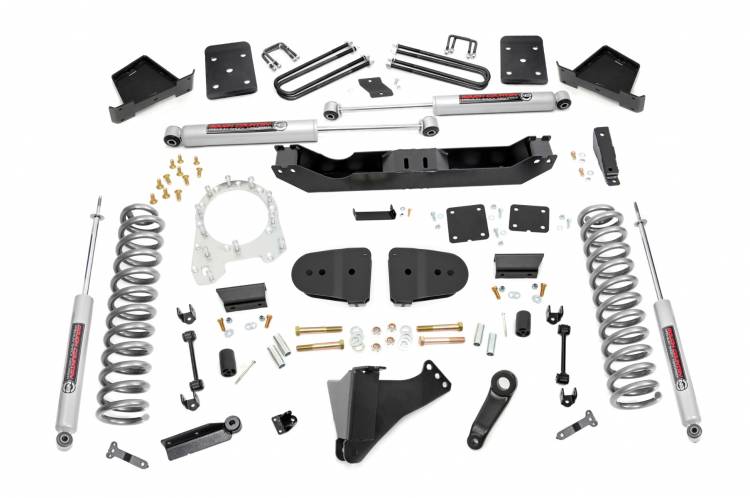

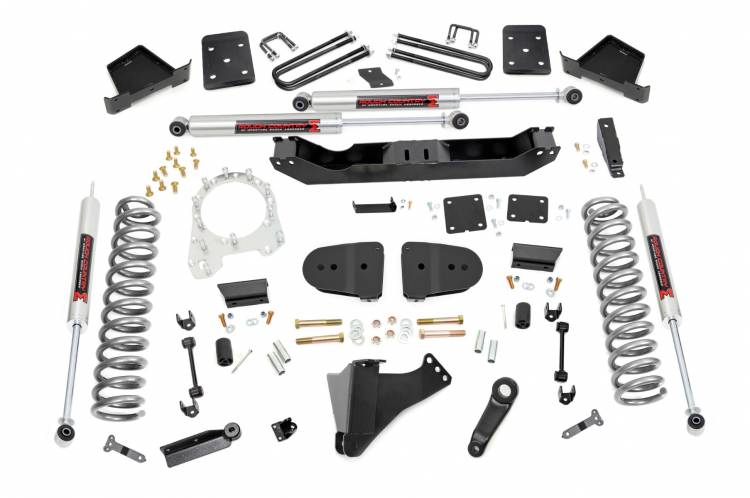

FRONT
  • Lifted Coil Springs
  • Radius Arm Drop Brackets
  • Clocking Ring Kit
  • Sway-Bar Links
  • Track Bar Drop Bracket
  • Stabilizer Relocation Brackets
  • Pitman Arm
  • Brake Line Brackets
  • Bumpstop Spacers
  • Hardware
REAR
  • Fabricated Lift Blocks
  • Brake Line Brackets
  • U-bolts
  • Hardware
SHOCKS
  • (4) Premium N3 Shocks
Est. Install Time

6-10 hours

2023-2023 4WD Ford F-250 Super Duty
2023-2023 4WD Ford F-350 Super Duty
37x12.50R17 17x9 8x170 -12 -
37x12.50R17 17x9 8x170 +0 -
37x12.50R17 17x9 8x170 +1 -
37x12.50R18 18x9 8x170 -12 -
37x12.50R18 18x9 8x170 +0 -
37x12.50R18 18x9 8x170 +1 -
37x12.50R20 20x9 8x170 -12 -
37x12.50R20 20x9 8x170 +0 -
37x12.50R20 20x9 8x170 +1 -
37x12.50R20 20x10 8x170 -25 Minor Trimming
37x12.50R20 20x10 8x170 -24 Minor Trimming
37x12.50R20 20x10 8x170 -19 Minor Trimming
35x12.50R20 20x10 8x170 -19 -
37x12.50R20 20x10 8x170 -18 Minor Trimming
35x12.50R20 20x10 8x170 -18 -
37x12.50R20 20x12 8x170 -44 Trimming Required
35x12.50R20 20x12 8x170 -44 Minor Trimming
37x12.50R22 22x9 8x170 -12 -
37x12.50R22 22x9 8x170 +0 -
37x12.50R22 22x9 8x170 +1 -
37x12.50R22 22x10 8x170 -25 Minor Trimming
37x12.50R22 22x10 8x170 -24 Minor Trimming
37x12.50R22 22x10 8x170 -19 Minor Trimming
35x12.50R22 22x10 8x170 -19 -
37x12.50R22 22x10 8x170 -18 Minor Trimming
35x12.50R22 22x12 8x170 -44 -
