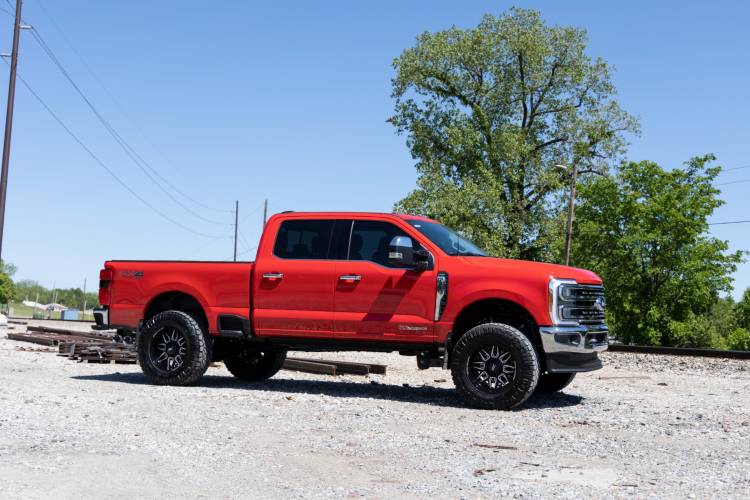

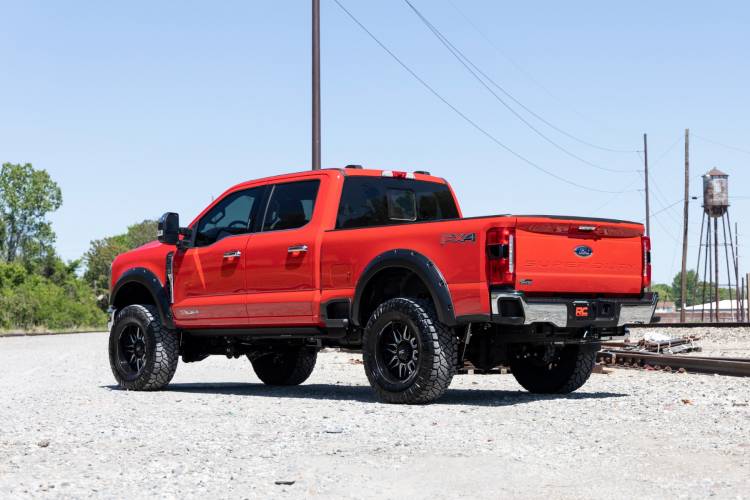

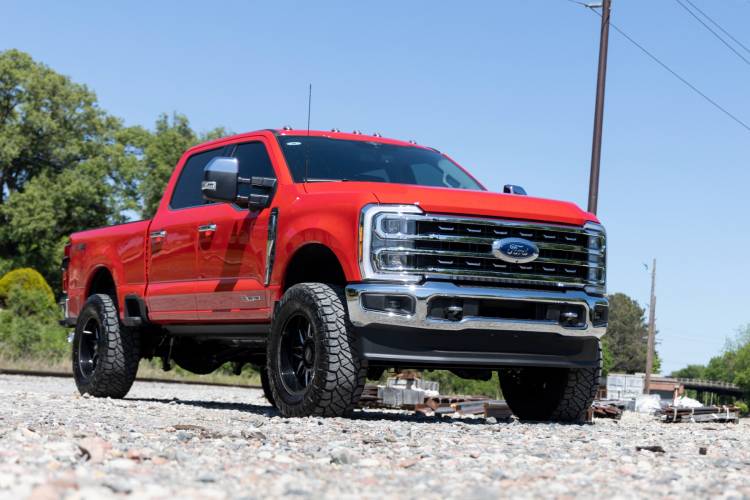

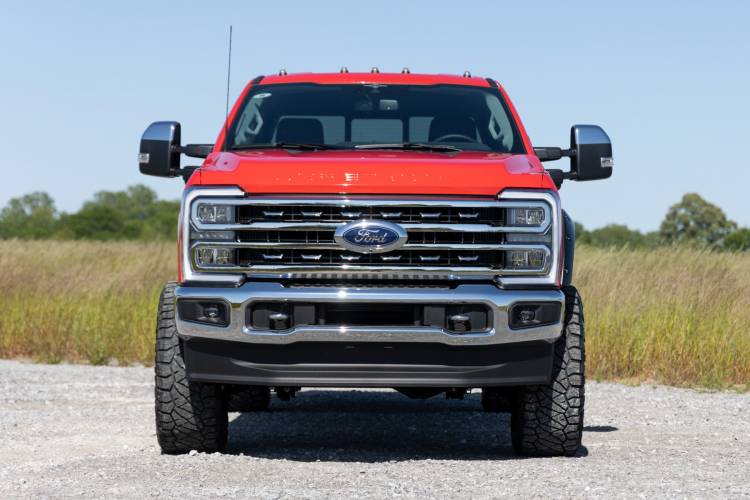

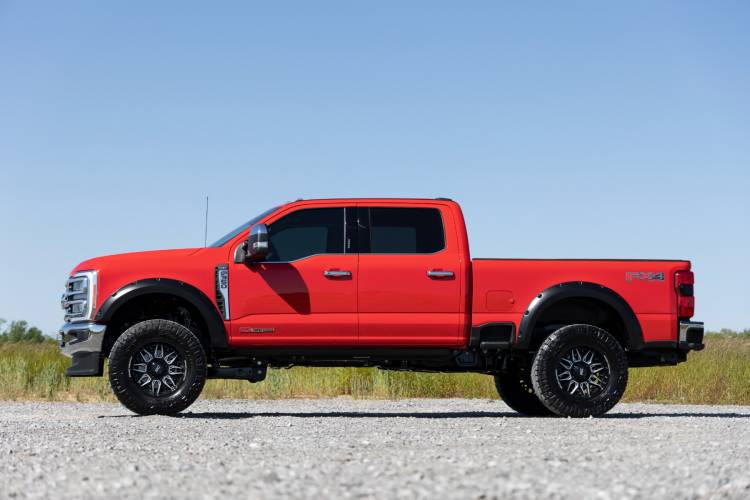

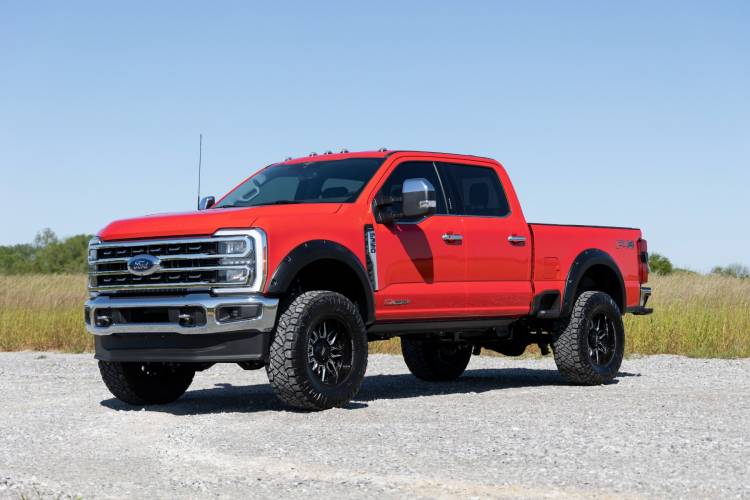

Give your 5th generation Ford Super Duty an impressive upgrade, front to back with Rough Country’s 3" Suspension Lift Kit! This easy-to-install lift kit raises the front of your vehicle to be equal height with the rear for a leveled, better-than-stock look that gives an improved ride height and more aggressive appearance.

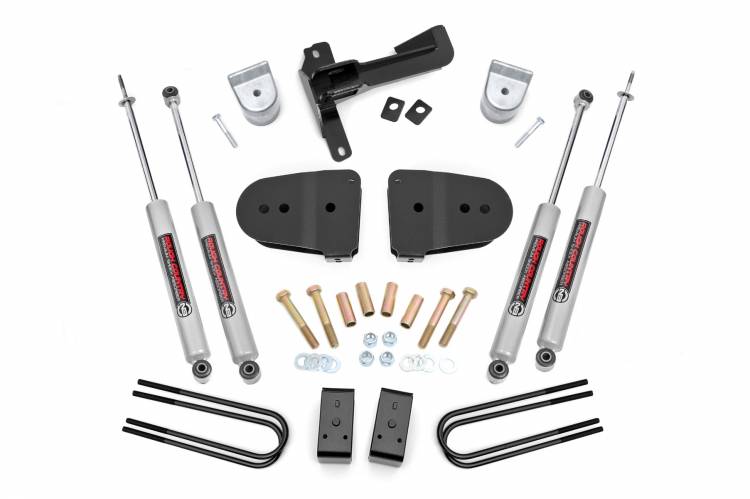

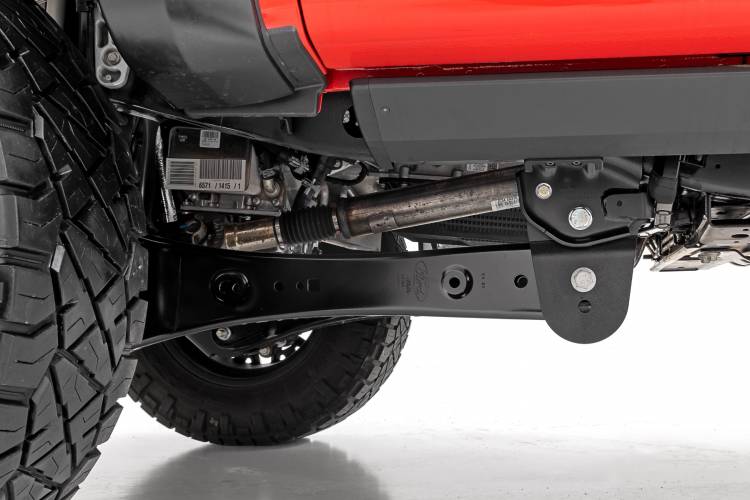

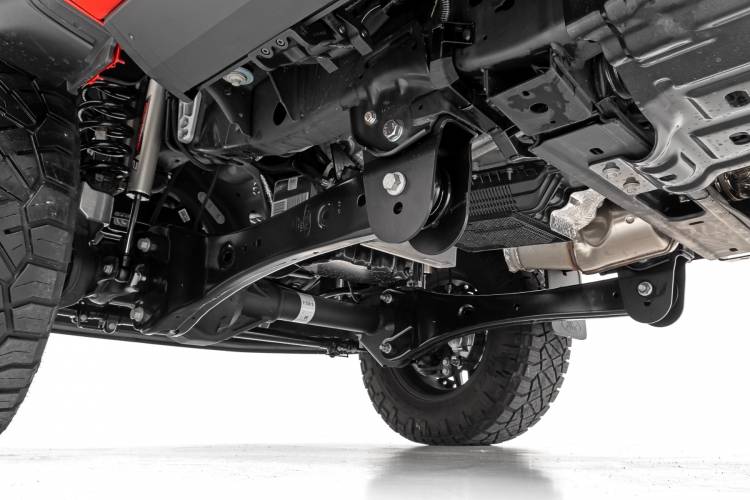

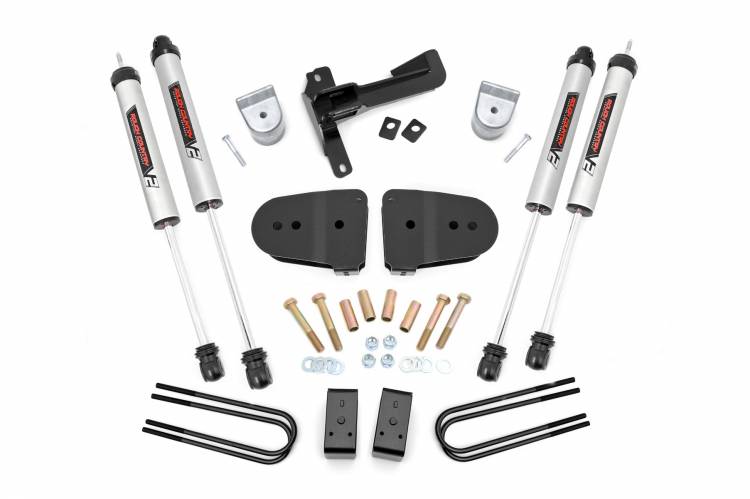

This kit features a set of front, lifted coil springs spacers allowing you gain additional ride height without sacrificing ride quality or performance. A set of radius arm drop brackets as well as a track bar drop bracket are provided to keep everything at optimum angles for a factory-like ride, even after lifting.
A set of Rough Country's premium N3 shocks are also included. These fine tuned 10-stage variable high-pressure Nitrogen charged shocks offer a fantastic blend of off-road action and smooth highway ride quality. With a durable 18mm spring-loaded piston rod and faster-cooling 54mm shock body.
Get the wheels you want! Rough Country's 3" Suspension Lift Kit comes with everything you need to fit up to a 35" tire with proper wheel backspacing.
Best of all, Rough Country's 3" Suspension Lift Kit is backed by our Limited Lifetime Replacement Warranty.
Est. Install Time | 3-4 hours |
---|
2023-2023 | 4WD | Ford | F-250 Super Duty |
35x12.50R20 | Factory 20 | 8x170 | - | - |
35x12.50R18 | Factory 18 | 8x170 | - | - |
35x12.50R17 | Factory 17 | 8x170 | - | - |
35x12.50R17 | 17x8.5 | 8x170 | +0 | Minor Trimming |
35x12.50R17 | 17x8.5 | 8x170 | +1 | Minor Trimming |
35x12.50R17 | 17x9 | 8x170 | +0 | Minor Trimming |
35x12.50R17 | 17x9 | 8x170 | +1 | Minor Trimming |
35x12.50R17 | 17x9 | 8x170 | +18 | Minor Trimming |
35x12.50R17 | 17x9 | 8x170 | +20 | Minor Trimming |
35x12.50R18 | 18x8.5 | 8x170 | +0 | Minor Trimming |
35x12.50R18 | 18x8.5 | 8x170 | +1 | Minor Trimming |
35x12.50R18 | 18x9 | 8x170 | +0 | Minor Trimming |
35x12.50R18 | 18x9 | 8x170 | +1 | Minor Trimming |
35x12.50R18 | 18x9 | 8x170 | +18 | Minor Trimming |
35x12.50R18 | 18x9 | 8x170 | +20 | Minor Trimming |
35x12.50R20 | 20x9 | 8x170 | +0 | Minor Trimming |
35x12.50R20 | 20x9 | 8x170 | +1 | Minor Trimming |
35x12.50R20 | 20x9 | 8x170 | +18 | Minor Trimming |
35x12.50R20 | 20x9 | 8x170 | +20 | Minor Trimming |
35x12.50R20 | 20x10 | 8x170 | -25 | Minor Trimming |
35x12.50R20 | 20x10 | 8x170 | -24 | Minor Trimming |
35x12.50R20 | 20x10 | 8x170 | -19 | Minor Trimming |
295/60R20 | 20x10 | 8x170 | -19 | - |
35x12.50R20 | 20x10 | 8x170 | -18 | Minor Trimming |
295/60R20 | 20x10 | 8x170 | -18 | - |
35x12.50R20 | 20x12 | 8x170 | -44 | Minor Trimming |
35x12.50R22 | 22x10 | 8x170 | -25 | Minor Trimming |
35x12.50R22 | 22x10 | 8x170 | -24 | Minor Trimming |
35x12.50R22 | 22x10 | 8x170 | -19 | Minor Trimming |
35x12.50R22 | 22x10 | 8x170 | -18 | Minor Trimming |
35x12.50R22 | 22x12 | 8x170 | -44 | Minor Trimming |
