ROUGH COUNTRY 3 INCH LIFT KIT FORD F-250 SUPER DUTY 4WD (2023)

RC-43630
Pricing: $849.95

Customize Your Item

- Shock Series -
 * required
Qty:
Free Shipping

Description

Give your 5th generation Ford Super Duty an impressive upgrade, front to back with Rough Country’s 3" Suspension Lift Kit! This easy-to-install lift kit raises the front of your vehicle to be equal height with the rear for a leveled, better-than-stock look that gives an improved ride height and a more aggressive appearance.

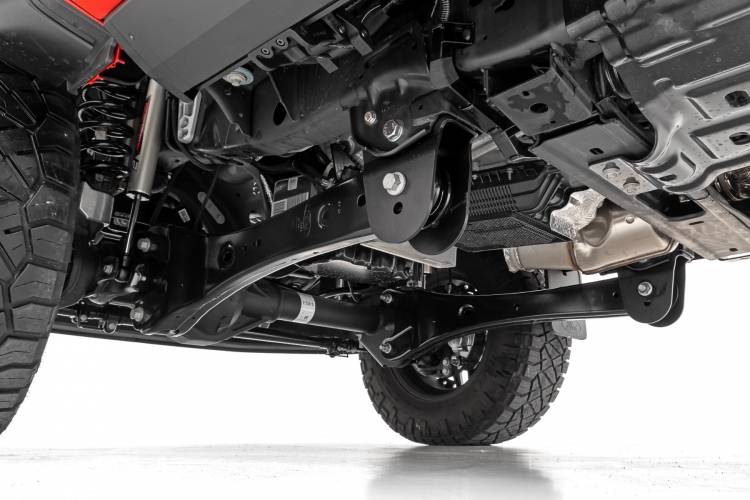

This kit features a set of front, lifted coil springs allowing you to gain additional ride height without sacrificing ride quality or performance. A set of radius arm drop brackets as well as a track bar drop bracket are provided to keep everything at optimum angles for a factory-like ride, even after lifting.

A set of Rough Country's premium N3 shocks are also included. These fine-tuned 10-stage variable high-pressure Nitrogen charged shocks offer a fantastic blend of off-road action and smooth highway ride quality. With a durable 18mm spring-loaded piston rod and faster-cooling 54mm shock body.

Get the wheels you want! Rough Country's 3" Suspension Lift Kit comes with everything you need to fit up to a 35" tire with proper wheel backspacing.

Best of all, Rough Country's 3" Suspension Lift Kit is backed by our Limited Lifetime Replacement Warranty.

FEATURES

  • Easy bolt-on installation.
  • Maintains factory ride quality.
  • Increased ground clearance.
  • Levels the front with the rear of the vehicle.

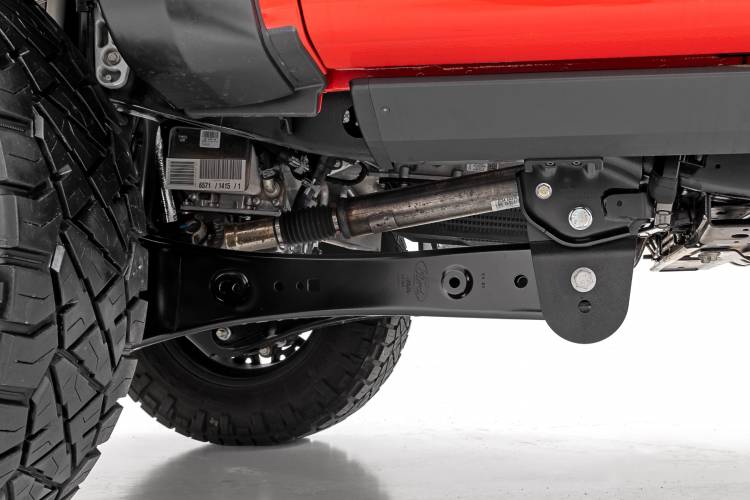

  • Radius arm drop brackets allow for properly set caster. Proper caster is crucial to maintaining factory handling and driveability.

NOTES - IMPORTANT

  • Does NOT F-350 models.
  • Does NOT fit gas models.
  • Does NOT fit dually models.
  • Does NOT fit 4" rear axle tubes.
  • Does NOT work on models equipped with Tremor Factory Trim Package.
  • Does NOT fit models equipped with LED Projector headlights / Auto Leveling Headlight Function.
  • If equipped with factory top mount overload spring it will need to be removed.

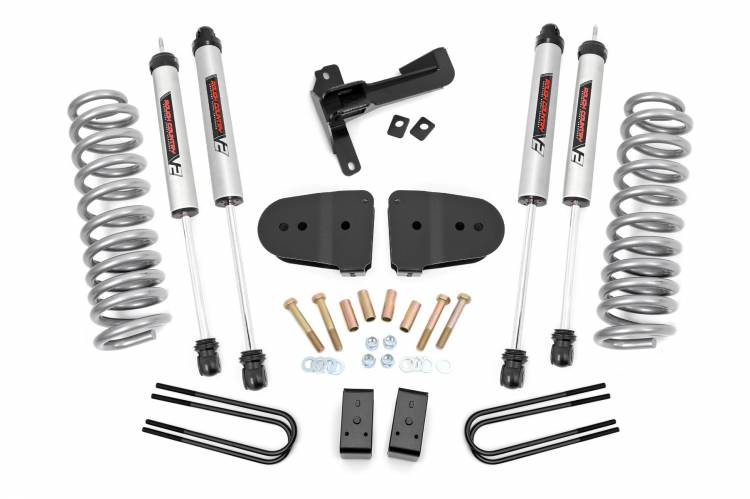

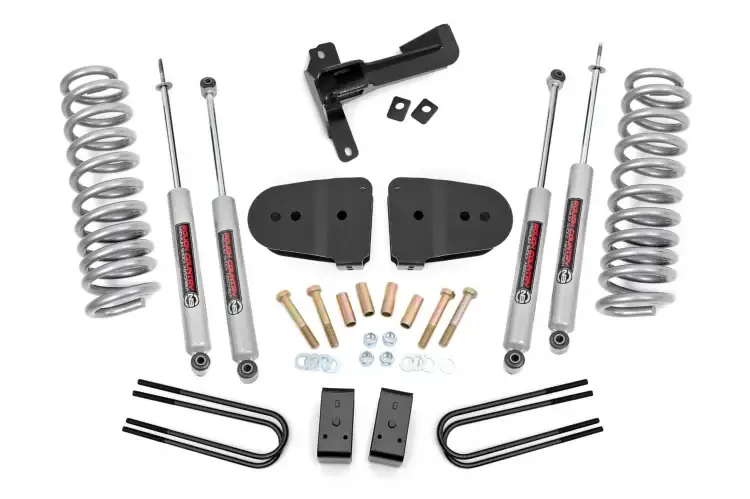

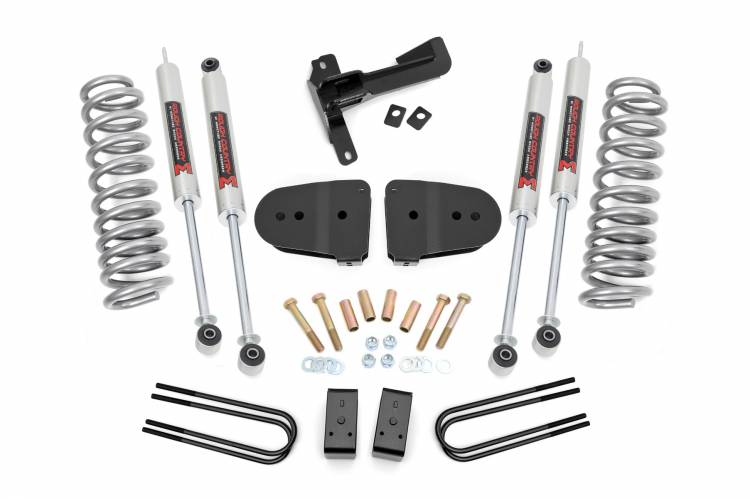

FRONT
  • Coil springs
  • Radius arm drop brackets
  • Track bar drop bracket
  • Hardware
REAR
  • 4in lift blocks
  • U-bolts
  • Hardware
SHOCKS
  • (4) Premium N3 Shocks
Est. Install Time 3-4 hours
2023-2023 4WD Ford F-250 Super Duty
35x12.50R20 Factory 20 8x170 - -
35x12.50R18 Factory 18 8x170 - -
35x12.50R17 Factory 17 8x170 - -
35x12.50R17 17x8.5 8x170 +0 Minor Trimming
35x12.50R17 17x8.5 8x170 +1 Minor Trimming
35x12.50R17 17x9 8x170 +0 Minor Trimming
35x12.50R17 17x9 8x170 +1 Minor Trimming
35x12.50R17 17x9 8x170 +18 Minor Trimming
35x12.50R17 17x9 8x170 +20 Minor Trimming
35x12.50R18 18x8.5 8x170 +0 Minor Trimming
35x12.50R18 18x8.5 8x170 +1 Minor Trimming
35x12.50R18 18x9 8x170 +0 Minor Trimming
35x12.50R18 18x9 8x170 +1 Minor Trimming
35x12.50R18 18x9 8x170 +18 Minor Trimming
35x12.50R18 18x9 8x170 +20 Minor Trimming
35x12.50R20 20x9 8x170 +0 Minor Trimming
35x12.50R20 20x9 8x170 +1 Minor Trimming
35x12.50R20 20x9 8x170 +18 Minor Trimming
35x12.50R20 20x9 8x170 +20 Minor Trimming
35x12.50R20 20x10 8x170 -25 Minor Trimming
35x12.50R20 20x10 8x170 -24 Minor Trimming
35x12.50R20 20x10 8x170 -19 Minor Trimming
295/60R20 20x10 8x170 -19 -
35x12.50R20 20x10 8x170 -18 Minor Trimming
295/60R20 20x10 8x170 -18 -
35x12.50R20 20x12 8x170 -44 Minor Trimming
35x12.50R22 22x10 8x170 -25 Minor Trimming
35x12.50R22 22x10 8x170 -24 Minor Trimming
35x12.50R22 22x10 8x170 -19 Minor Trimming
35x12.50R22 22x10 8x170 -18 Minor Trimming
35x12.50R22 22x12 8x170 -44 Minor Trimming
