BDS SUSPENSION 6 Inch Lift Kit | FOX 2.5 DSC Coil-Over | Chevy Silverado Or GMC Sierra 1500 (19-24) 4WD | Gas

BDS1801F
Pricing: $4,500.00
Qty:
Free Shipping

Description

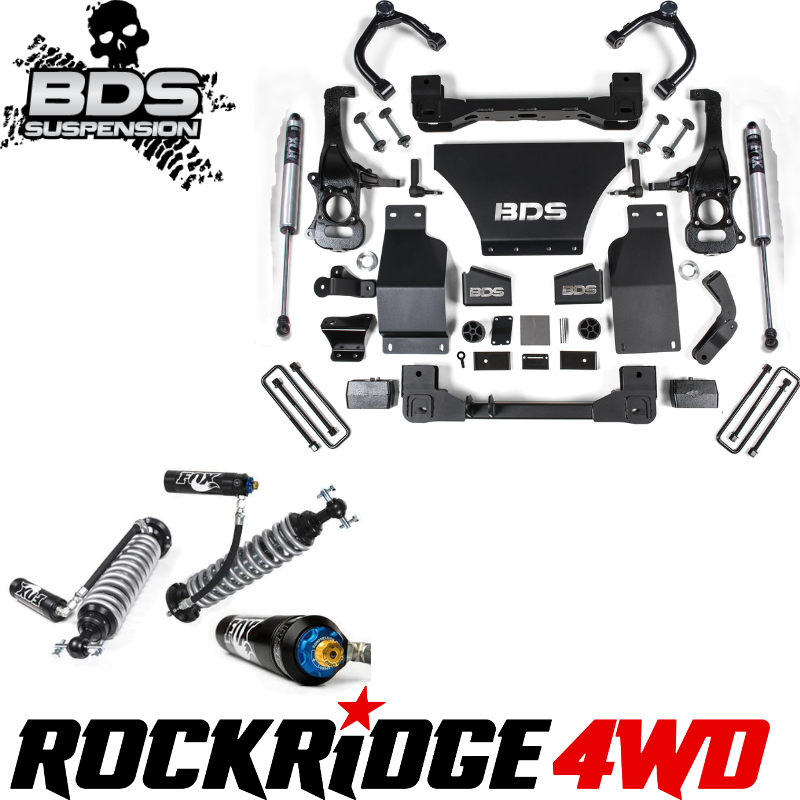

Up the ante in performance with your Chevy Silverado and GMC Sierra 1500 truck by installing the BDS 6-inch lift kit suspension featuring FOX 2.5 DSC coil-over shocks. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires. These kits feature proprietary FOX 2.5 coil-over shocks designed specifically to bolt-on performance for increase travel and the ability to soak up the roughest terrain along with smooth on-road comfort.

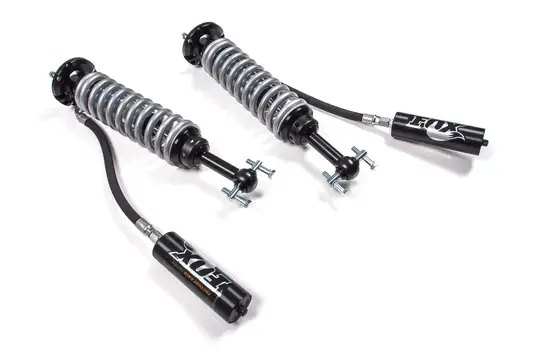

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes FOX DSC coil-over shocks, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles and replacement tie rod ends allowing for ESC system compatibility. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear BDS offers a heavy duty lift block to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear are new u-bolts, brake line brackets and precision tuned premium FOX 2.0 Performance Series shocks.

High Clearance Crossmembers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.

Features & Benefits

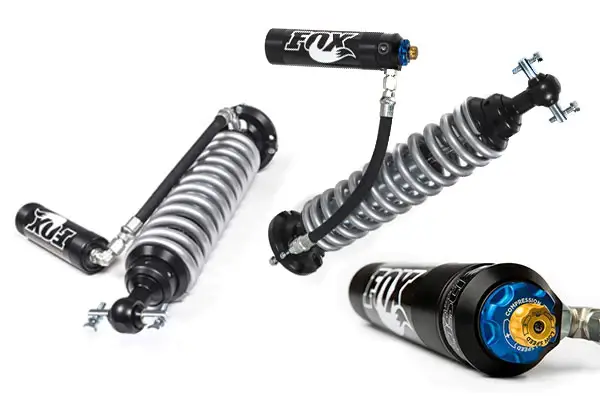

  • FOX 2.5 DSC Adjuster for improved ride quality, performance, and capability
  • High clearance crossmember design maximizes ground clearance
  • Robust steering knuckles maintain ESC system compliance
  • High-strength replacement upper control arms provide durability and serviceability
  • HD skid plate system improved offroad protection
  • Multipoint differential relocation brackets to secure the front axle and improve CV angles
  • Factory Protection Plus drivetrain warranty included

Recommended Tires & Wheels

(Trimming may be required)

  • 35 x 12.5 with 17 x 9 and 4.5 in. Backspace
  • 35 x 12.5 with 20 x 9 and 6.25 in. Backspace
  • 37 x 12.5 with 20 x 9 and 6.25 in. Backspace

Rear Shock Option

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish
  1. Requires frame bracket modification.
  2. Factory 17-18" wheels cannot be reinstalled due to tie rod end interference, stock 20" wheels can be reinstalled
  3. 17" wheels with 4.5" backspacing should be test fit prior to mounting the tire to ensure proper clearance to the steering knuckle / tie rod
  4. All aftermarket wheels should be test fit prior to mounting the tire to ensure proper clearance to the brake caliper. Some wheel profiles will not clear the brake caliper. These can be test fitted before the vehicle is lifted in a stock condition
  5. Actual ride height on coilover kits is closer to 6.5'' of lift
  6. 2.7L models use diesel kit for proper skid plate fitment
  7. Will NOT fit models with a single leaf spring (monoleaf) rear suspension.
  • Front Lift Method : Cross-Member
  • Rear Lift Method : Block
  • Shocks Included : Yes
  • Front Lift Height : 6"
  • Rear Lift Height : 4"



BOXES INLUDED

BDS011518

BDS021680

BDS021681

BDS021682

BDS021683

BDS121633

FOX98224759

FOX88306160

BDS121260

Year Make Model Submodel Drive Type Fuel Type Position Lift Height
2019 Chevrolet Silverado 1500 Custom 4WD GAS ALL ALL
2019 Chevrolet Silverado 1500 Custom 4WD FLEX ALL ALL
2019 Chevrolet Silverado 1500 High Country 4WD GAS ALL ALL
2019 Chevrolet Silverado 1500 LT 4WD GAS ALL ALL
2019 Chevrolet Silverado 1500 LTZ 4WD GAS ALL ALL
2019 Chevrolet Silverado 1500 RST 4WD GAS ALL ALL
2019 Chevrolet Silverado 1500 SSV 4WD FLEX ALL ALL
2019 Chevrolet Silverado 1500 SSV 4WD GAS ALL ALL
2019 Chevrolet Silverado 1500 WT 4WD GAS ALL ALL
2019 Chevrolet Silverado 1500 WT 4WD FLEX ALL ALL
2019 Chevrolet Silverado 1500 WT Cab Regular 4WD ALL ALL ALL
2019 Chevrolet Silverado 1500 WT Doble Cabina 4WD ALL ALL ALL
2019 GMC Sierra 1500 Base 4WD GAS ALL ALL
2019 GMC Sierra 1500 Elevation 4WD GAS ALL ALL
2019 GMC Sierra 1500 SLE 4WD GAS ALL ALL
2019 GMC Sierra 1500 SLT 4WD GAS ALL ALL
2020 Chevrolet Silverado 1500 Custom 4WD GAS ALL ALL
2020 Chevrolet Silverado 1500 Custom 4WD GAS ALL ALL
2020 Chevrolet Silverado 1500 High Country 4WD FLEX ALL ALL
2020 Chevrolet Silverado 1500 High Country 4WD GAS ALL ALL
2020 Chevrolet Silverado 1500 LT 4WD GAS ALL ALL
2020 Chevrolet Silverado 1500 LT 4WD FLEX ALL ALL
2020 Chevrolet Silverado 1500 LTZ 4WD FLEX ALL ALL
2020 Chevrolet Silverado 1500 LTZ 4WD GAS ALL ALL
2020 Chevrolet Silverado 1500 RST 4WD GAS ALL ALL
2020 Chevrolet Silverado 1500 RST 4WD FLEX ALL ALL
2020 Chevrolet Silverado 1500 SSV 4WD FLEX ALL ALL
2020 Chevrolet Silverado 1500 SSV 4WD GAS ALL ALL
2020 Chevrolet Silverado 1500 WT 4WD FLEX ALL ALL
2020 Chevrolet Silverado 1500 WT 4WD GAS ALL ALL
2020 Chevrolet Silverado 1500 WT Cab Regular 4WD GAS ALL ALL
2020 Chevrolet Silverado 1500 WT Cab Regular 4WD FLEX ALL ALL
2020 Chevrolet Silverado 1500 WT Doble Cabina 4WD FLEX ALL ALL
2020 Chevrolet Silverado 1500 WT Doble Cabina 4WD GAS ALL ALL
2020 GMC Sierra 1500 Base 4WD FLEX ALL ALL
2020 GMC Sierra 1500 Base 4WD GAS ALL ALL
2020 GMC Sierra 1500 Elevation 4WD GAS ALL ALL
2020 GMC Sierra 1500 Elevation 4WD FLEX ALL ALL
2020 GMC Sierra 1500 SLE 4WD FLEX ALL ALL
2020 GMC Sierra 1500 SLE 4WD GAS ALL ALL
2020 GMC Sierra 1500 SLT 4WD GAS ALL ALL
2020 GMC Sierra 1500 SLT 4WD FLEX ALL ALL
2021 Chevrolet Silverado 1500 Custom 4WD FLEX ALL ALL
2021 Chevrolet Silverado 1500 Custom 4WD GAS ALL ALL
2021 Chevrolet Silverado 1500 High Country 4WD FLEX ALL ALL
2021 Chevrolet Silverado 1500 High Country 4WD GAS ALL ALL
2021 Chevrolet Silverado 1500 LT 4WD FLEX ALL ALL
2021 Chevrolet Silverado 1500 LT 4WD GAS ALL ALL
2021 Chevrolet Silverado 1500 LTZ 4WD FLEX ALL ALL
2021 Chevrolet Silverado 1500 LTZ 4WD GAS ALL ALL
2021 Chevrolet Silverado 1500 RST 4WD FLEX ALL ALL
2021 Chevrolet Silverado 1500 RST 4WD GAS ALL ALL
2021 Chevrolet Silverado 1500 SSV 4WD FLEX ALL ALL
2021 Chevrolet Silverado 1500 SSV 4WD GAS ALL ALL
2021 Chevrolet Silverado 1500 WT 4WD FLEX ALL ALL
2021 Chevrolet Silverado 1500 WT 4WD GAS ALL ALL
2021 GMC Sierra 1500 Base 4WD FLEX ALL ALL
2021 GMC Sierra 1500 Base 4WD GAS ALL ALL
2021 GMC Sierra 1500 Elevation 4WD FLEX ALL ALL
2021 GMC Sierra 1500 Elevation 4WD GAS ALL ALL
2021 GMC Sierra 1500 SLE 4WD GAS ALL ALL
2021 GMC Sierra 1500 SLE 4WD FLEX ALL ALL
2021 GMC Sierra 1500 SLT 4WD GAS ALL ALL
2021 GMC Sierra 1500 SLT 4WD FLEX ALL ALL
2022 Chevrolet Silverado 1500 Custom 4WD GAS ALL ALL
2022 Chevrolet Silverado 1500 High Country 4WD GAS ALL ALL
2022 Chevrolet Silverado 1500 LT 4WD GAS ALL ALL
2022 Chevrolet Silverado 1500 LTZ 4WD GAS ALL ALL
2022 Chevrolet Silverado 1500 RST 4WD GAS ALL ALL
2022 Chevrolet Silverado 1500 WT 4WD GAS ALL ALL
2022 GMC Sierra 1500 Elevation 4WD GAS ALL ALL
2022 GMC Sierra 1500 Pro 4WD GAS ALL ALL
2022 GMC Sierra 1500 SLE 4WD GAS ALL ALL
2022 GMC Sierra 1500 SLT 4WD GAS ALL ALL
2023 Chevrolet Silverado 1500 Base 4WD GAS ALL ALL
2023 Chevrolet Silverado 1500 Base 4WD FLEX ALL ALL
2023 Chevrolet Silverado 1500 Custom 4WD FLEX ALL ALL
2023 Chevrolet Silverado 1500 Custom 4WD GAS ALL ALL
2023 Chevrolet Silverado 1500 High Country 4WD FLEX ALL ALL
2023 Chevrolet Silverado 1500 High Country 4WD GAS ALL ALL
2023 Chevrolet Silverado 1500 LT 4WD FLEX ALL ALL
2023 Chevrolet Silverado 1500 LT 4WD GAS ALL ALL
2023 Chevrolet Silverado 1500 LTZ 4WD FLEX ALL ALL
2023 Chevrolet Silverado 1500 LTZ 4WD GAS ALL ALL
2023 Chevrolet Silverado 1500 PPV 4WD GAS ALL ALL
2023 Chevrolet Silverado 1500 PPV 4WD FLEX ALL ALL
2023 Chevrolet Silverado 1500 RST 4WD FLEX ALL ALL
2023 Chevrolet Silverado 1500 RST 4WD GAS ALL ALL
2023 Chevrolet Silverado 1500 WT 4WD GAS ALL ALL
2023 Chevrolet Silverado 1500 WT 4WD FLEX ALL ALL
2023 GMC Sierra 1500 Elevation 4WD GAS ALL ALL
2023 GMC Sierra 1500 Elevation 4WD FLEX ALL ALL
2023 GMC Sierra 1500 Pro 4WD GAS ALL ALL
2023 GMC Sierra 1500 Pro 4WD FLEX ALL ALL
2023 GMC Sierra 1500 SLE 4WD GAS ALL ALL
2023 GMC Sierra 1500 SLT 4WD GAS ALL ALL
2023 GMC Sierra 1500 SLT 4WD FLEX ALL ALL
2024 Chevrolet Silverado 1500 Custom 4WD GAS ALL ALL
2024 Chevrolet Silverado 1500 LT 4WD GAS ALL ALL
2024 Chevrolet Silverado 1500 LTZ 4WD GAS ALL ALL
2024 Chevrolet Silverado 1500 PPV 4WD GAS ALL ALL
2024 Chevrolet Silverado 1500 RST 4WD GAS ALL ALL
2024 Chevrolet Silverado 1500 WT 4WD GAS ALL ALL
2024 GMC Sierra 1500 Elevation 4WD GAS ALL ALL
2024 GMC Sierra 1500 Pro 4WD GAS ALL ALL
2024 GMC Sierra 1500 SLE 4WD GAS ALL ALL
2024 GMC Sierra 1500 SLT 4WD GAS ALL ALL
