- 305 / 55 with 20 x 9 and 5 in. Backspace
- 285 / 65 with 20 x 9 and 6.18 in. Backspace
- 35 x 12.5 with 18 x 9 and 5.5 in. Backspace
IMPORTANT NOTES
- Will not work on TRD Pro models.
2. Arms are designed to work with Fox Coilovers that require upper control arms and may not work with all aftermarket spacer lifts / lift kits (Will work with BDS 3” Lift). The ball joint has been re-indexed to allow for max range of motion with 2”-3” lifts.
3. Ball joint cap must be removed for maintenance of ball joint. Remove cap to access grease zerk. Grease at regular maintenance intervals
4. For replacement ball joints, order BDS088200. Ball joints are not directional
TIRES AND WHEELS
No Trimming*
295/65 R20 Tire w/ 6-7/8 BS (OE TRD Wheel)
285/65 R20 Tire or 285/75 R18 w/9” Wide 6-1/8” BS Wheel
295/60 R20 Tire or 295/70 R18 w/9” Wide 5-1/2” BS Wheel
305/55 R20 Tire or 305/65 R18 w/9” Wide 5” BS Wheel
Trimming**
325/60 R20 Tire w/9” Wide 6-1/8” BS Wheel
35/12.50 R20 Tire or 35/12.50 R18 w/9” Wide 5-1/2” BS Wheel
295/65 R20 Tire or 305/70 R18 or 285/75 R18w/9” Wide 5” BS Wheel
* Wheel and Tire combination was tested through normal driving
conditions within alignment specs with no rubbing or
trimming needed.
**Wheel and Tire combination was tested through
normal driving conditions within alignment specs and
some or all the following were required: removal of
mud flap, fender liner being trimmed or fastened
further back, body mount bump
being cut off or ground down

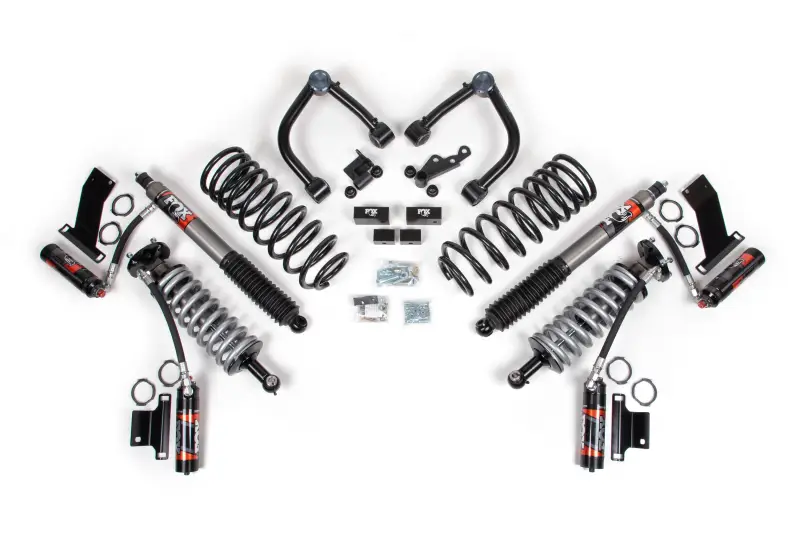

- Front Lift Method : Coil-Over
- Rear Lift Method : Springs
- Shocks Included : Yes
- Front Lift Height : 3"
- Rear Lift Height : 1"
Year |
Make |
Model |
Submodel |
Drive Type |
Fuel Type |
Position |
Lift Height |
2022 |
Toyota |
Tundra |
1794 Edition |
4WD |
ALL |
ALL |
ALL |
2022 |
Toyota |
Tundra |
Capstone |
4WD |
ALL |
ALL |
ALL |
2022 |
Toyota |
Tundra |
Limited |
4WD |
ALL |
ALL |
ALL |
2022 |
Toyota |
Tundra |
Platinum |
4WD |
ALL |
ALL |
ALL |
2022 |
Toyota |
Tundra |
SR |
4WD |
ALL |
ALL |
ALL |
2022 |
Toyota |
Tundra |
SR5 |
4WD |
ALL |
ALL |
ALL |
2023 |
Toyota |
Tundra |
1794 Edition |
4WD |
ALL |
ALL |
ALL |
2023 |
Toyota |
Tundra |
Limited |
4WD |
ALL |
ALL |
ALL |
2023 |
Toyota |
Tundra |
Platinum |
4WD |
ALL |
ALL |
ALL |
2023 |
Toyota |
Tundra |
SR |
4WD |
ALL |
ALL |
ALL |
2023 |
Toyota |
Tundra |
SR5 |
4WD |
ALL |
ALL |
ALL |
2024 |
Toyota |
Tundra |
1794 Edition |
4WD |
ALL |
ALL |
ALL |
2024 |
Toyota |
Tundra |
Capstone |
4WD |
ALL |
ALL |
ALL |
2024 |
Toyota |
Tundra |
Limited |
4WD |
ALL |
ALL |
ALL |
2024 |
Toyota |
Tundra |
Platinum |
4WD |
ALL |
ALL |
ALL |
2024 |
Toyota |
Tundra |
SR |
4WD |
ALL |
ALL |
ALL |
2024 |
Toyota |
Tundra |
SR5 |
4WD |
ALL |
ALL |
ALL |
