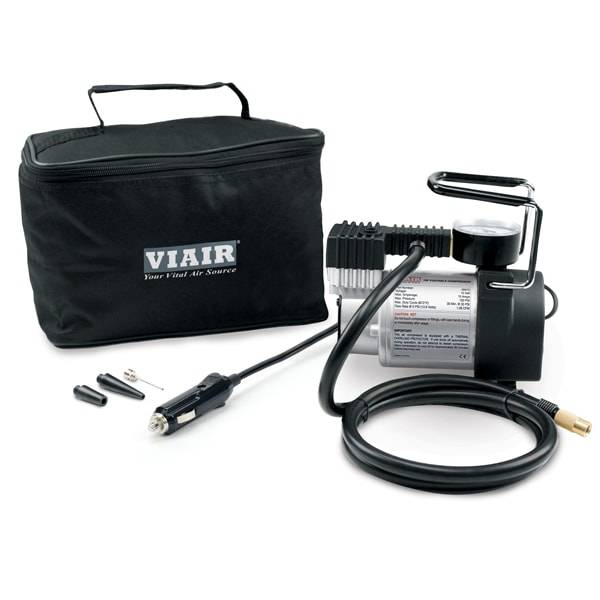

Viair 70P Portable Compressor Kit (Sport Compact Series, 12V, CE, 100 PSI, for Passenger Car Tires) - 00073

70P is a smaller powerful portable compressor capable of inflating up to 225/60/R18 tires by simply plugging into your cigarette lighter power port (Max: 15A/180W), connecting to a valve stem and turning the unit on. Tire pressure can be monitored using the gauge mounted on top of the unit, by temporarily switching the unit off.

Please Note: Always check your vehicle’s power port rating for maximum amperage before ordering. The 70P does not work with Presta bicycle valves.

FEATURES
– Vibration Isolators
– 3 pc. Inflation Tips Kit
– 150 PSI Gauge
– Accessory Power Plug
– Deluxe Carry Bag
– Installation Instructions
–
SPECIFICATIONS
– 12-Volt
– Permanent Magnetic Motor
– Duty Cycle: 30 min. @ 30 PSI
– Max. Working Pressure: 100 PSI
– Max. Amp/Watt Draw: 15A/180W
– Ingress Protection Rating: IP54
– Max. Ambient Temp: +158°F
– Min. Ambient Temp: -4°F
– Dimensions: 6.5?L x 3.6?W x 6.2?H
– Net Weight: 5.05 lbs.
– Power Cord Length: 16 ft.
– Air Hose Length: 4 ft.

RECOMMENDED COMPONENTS
– 6ft. Portable Compressor Air Extension Hose (P/N 00016)

PERFORMANCE DATA
PSI CFM A BAR LPM A
0 1.06 12 0 30.0 12
10 1.01 13 1.0 27.5 13
20 0.92 13 2.0 23.9 14
30 0.84 14 3.0 20.6 14
40 0.76 14 4.0 17.1 15
50 0.67 15 5.0 14.5 14
60 0.59 15 6.0 11.4 13
70 0.53 14 7.0 9.1 13
80 0.46 14
90 0.38 13
100 0.33 13
* Supply Voltage: 13.8 Volts

FILL RATES
195/70R14 FILL RATE
0 to 30 PSI 2 min. 55 sec. (± 10 sec.)
15 to 30 PSI 1 min. 45 sec. (± 05 sec.)
225/60R18 FILL RATE
0 to 30 PSI 4 min. 22 sec. (± 10 sec.)
15 to 30 PSI 2 min. 10 sec. (± 05 sec.)
