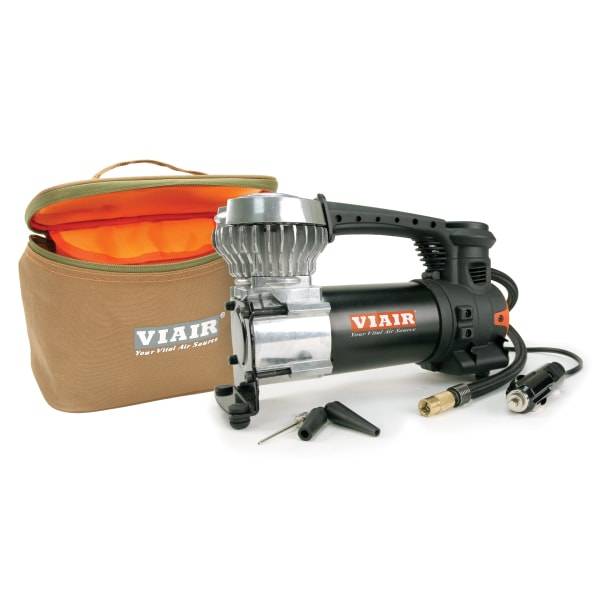

Viair 85P Portable Compressor Kit (Sport Compact Series, 12V, CE, 60 PSI, for Up to 31" Tires) - 00085

85P is a small portable compressor with a built-in LED work light, capable of inflating up to 31-inch tires by simply plugging into your cigarette lighter power port (Max: 15A/180W). Connect the screw-on tire chuck to a tire valve stem before turning the unit on. Tire pressure can be monitored using the gauge incorporated into the top of
the unit.

Please Note: Always check your vehicle’s power port rating for maximum amperage before ordering. The 85P does not work with Presta bicycle valves.

FEATURES
– 120 PSI Pressure Gauge
– LED Work Light / Power Indicator
– Solid Brass Twist-on Tire Chuck
– Accessory Power Plug
– 3 pc. Inflation Tips Kit
– Deluxe Carry Bag
–
SPECIFICATIONS
– 12-Volt
– Permanent Magnetic Motor
– Duty Cycle: 20 min. @ 30 PSI
– Max. Working Pressure: 60 PSI
– Max. Amp/Watt Draw: 15A/180W
– Ingress Protection Rating: IP53
– Max. Ambient Temp: +158°F
– Min. Ambient Temp: -4°F
– Dimensions: 9.1?L x 3.1?W x 5.6?H
– Net Weight: 4.30 lbs.
– Power Cord Length: 10 ft.
– Air Hose Length: 3 ft.

RECOMMENDED COMPONENTS
– 6ft. Portable Compressor Air Extension Hose (P/N 00016)

PERFORMANCE DATA
PSI CFM A BAR LPM A
0 1.26 13 0 35.7 13
10 1.22 13 1.0 33.5 13
20 1.13 13 2.0 29.3 14
30 1.02 14 3.0 24.8 15
40 0.92 15 4.0 20.5 13
50 0.80 14
60 0.71 13
* Supply Voltage: 13.8 Volts

FILL RATES
195/70R14 FILL RATE
0 to 30 PSI 2 min. 10 sec. (±10 sec.)
15 to 30 PSI 1 min. 10 sec. (±05 sec.)
225/60R18 FILL RATE

0 to 30 PSI 3 min. 00 sec. (±10 sec.)
15 to 30 PSI 1 min. 35 sec. (±05 sec.)
31? X 10.5? FILL RATE
0 to 30 PSI 4 min. 50 sec. (±15 sec.)
15 to 30 PSI 2 min. 35 sec. (±05 sec.)
