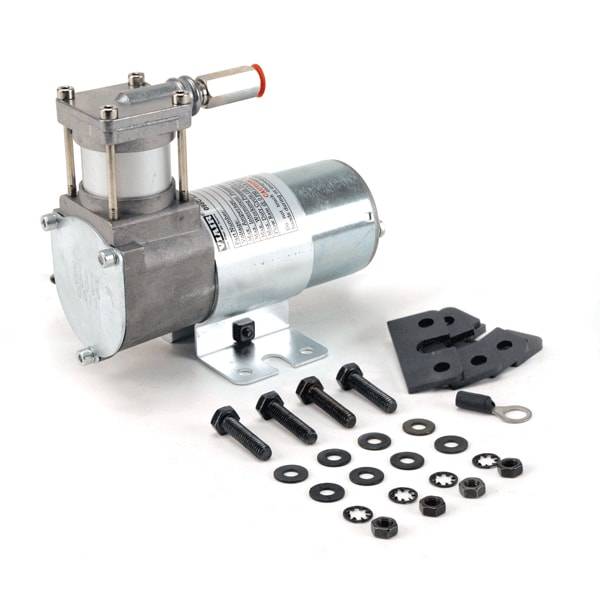

VIAIR 98C Compressor Kit w/ Omega Style Mounting Bracket (12V, 10% Duty, Sealed) - 00098

VIAIR’s 90 Series compressors offer a light duty solution for smaller air requirements and are meant to fill no larger than a 1.0 gallon air tank. Multiple duty cycle, mounting, compressor finish and intake options are available depending on model.



FEATURES
– Omega Bracket
– Check Valve
– Vibration Isolators
– Mounting Hardware
– Installation Instructions
–
SPECIFICATIONS
– 12-Volt
– Permanent Magnetic Motor
– Duty Cycle: 10% @ 100 PSI
– Max. Working Pressure: 130 PSI
– Max. Air Tank Size: 1.0 Gallon
– Max. 12V Amp Draw: 12 Amps
– Ingress Protection Rating: IP54
– Dimensions: 5.6?L x 3.1?W x 4.7?H
– Net Weight: 2.55 lbs.

RECOMMENDED COMPONENTS
– 0.5 Gallon Tank (P/N 91005)
– 12V Relay (P/N 93940)
– Pressure Switches (P/N 90100, 90101))
– Sealed Pressure Switch (P/N 90223)


PERFORMANCE DATA
PSI CFM A BAR LPM A
0 1.53 7 0 43.5 7
10 1.00 9 1.0 28.0 9
20 0.95 10 2.0 25.5 11
30 0.90 11 3.0 22.7 11
40 0.85 11 4.0 20.7 12
50 0.77 12 5.0 18.3 12
60 0.72 12 6.0 16.3 12
70 0.65 12 7.0 13.7 12
80 0.60 12 8.0 11.7 12
90 0.54 12 9.0 10.0 11
100 0.48 12
110 0.44 12
120 0.39 12
130 0.35 11
* Supply Voltage: 13.8 Volts

FILL RATES
0.5 GALLON TANK FILL RATE
0 to 105 PSI 50 sec. (± 05 sec.)
85 to 105 PSI 15 sec. (± 03 sec.)
0 to 130 PSI 1 min. 05 sec. (± 05 sec.)
90 to 130 PSI 21 sec. (± 03 sec.)

1.0 GALLON TANK FILL RATE
0 to 105 PSI 1 min. 40 sec. (± 10 sec.)
85 to 105 PSI 30 sec. (± 05 sec.)
0 to 130 PSI 2 min. 10 sec. (± 10 sec.)
90 to 130 PSI 45 sec. (± 05 sec.)
