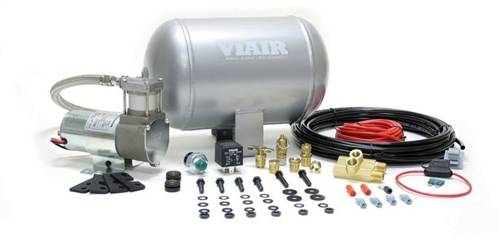

VIAIR Ultra-Light Duty Onboard Air System For Air Horns & Air Lockers (12V, 130 PSI Compressor, 1.0 Gal. Tank) - 10000

Ultra Light Duty Onboard Air System can be used to pressurize the included 1.0 gallon air tank for air horn use, air lockers, and a host of other light duty pneumatic needs. While not intended for tire inflation, this onboard air system provides a reliable air source in a smaller volume, and a cost effective package.

Please Note: Use thread sealant for proper installation. Teflon tape is not recommended.
Properly sealed, recommended torque for 1/8? is 10 ~ 11 ft. lbs.
Recommended torque for 1/4? and 3/8? is 12 ~ 15 ft. lbs.



FEATURES
– 1.0 Gallon VIAIR Air Tank
– 98C VIAIR Air Compressor
– Omega Bracket with Mounting Hardware
– Pressure Switch (85 PSI on, 105 PSI off)
– 40-amp Relay
– 145 PSI Safety Valve
– T-Fitting: 1/4” (M) x 1/4? (F) x 1/8” (F)
– T-Fitting: 1/4” (M) x 1/4? (F) x 1/4” (F)
– 1/4” Drain Cock
– 1/4” Compression Fitting
– 1/4” Plug (M)
– (2) 1/4” (M) NPT to 1/8” (F) BSP
– 20ft. 12 Gauge Wire with Inline Fuse Holder
– Accessory Airline
– Electrical Connections

SPECIFICATIONS
– 12-Volt
– Permanent Magnetic Motor
– Duty Cycle: 10% @ 100 PSI
– Max. Working Pressure: 105 PSI
– Max. Amp Draw: 12 Amps
– Ingress Protection Rating: IP54
–
All Fittings are NPT rated unless otherwise noted.



PERFORMANCE DATA
PSI CFM A BAR LPM A
0 1.53 7 0 43.5 7
10 1.00 9 1.0 28.0 9
20 0.95 10 2.0 25.5 11
30 0.90 11 3.0 22.7 11
40 0.83 11 4.0 20.7 12
50 0.77 12 5.0 18.3 12
60 0.72 12 6.0 16.3 12
70 0.65 12 7.0 13.7 12
80 0.60 12 8.0 11.7 12
90 0.54 12 9.0 10.0 11
100 0.48 12
110 0.44 12
120 0.39 12
130 0.35 11
* Supply Voltage: 13.8 Volts

FILL RATES
1.0 GALLON TANK FILL RATE
0 to 105 PSI 1 min. 40 sec. (± 10 sec.)
85 to 105 PSI 30 sec. (± 05 sec.)
