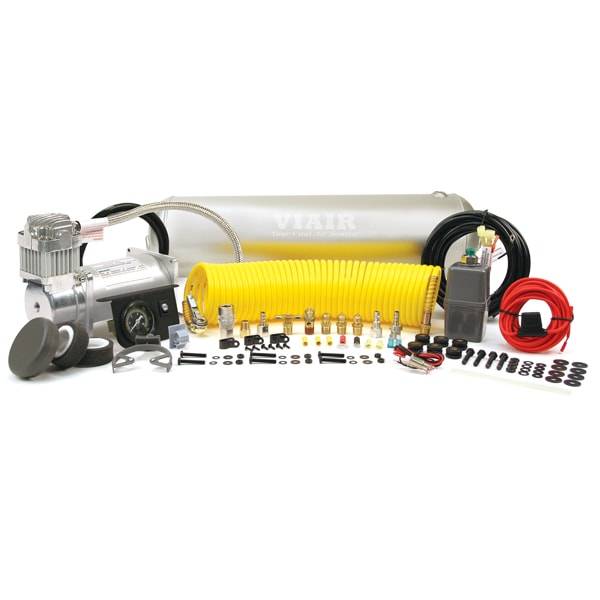

VIAIR Heavy Duty Onboard Air System (12V, CE, 150 PSI Compressor, 2.5 Gal. Tank) *Up to a 35" Tire - 10005

VIAIR’s Heavy Duty Onboard Air System is a pre-packaged compressed air solution that provides a faster 33% duty cycle 400C compressor, 2.5 gallon air tank, and all components needed to install a working system capable of inflating tires right out of the box.

Please Note: Use thread sealant for proper installation. Teflon tape is not recommended. Properly sealed, recommended torque for 1/8? is 10 ~ 11 ft. lbs. Recommended torque for 1/4? and 3/8? is 12 ~ 15 ft. lbs.

FEATURES
– 2.5 Gallon VIAIR Air Tank
– 400C VIAIR Compressor
– 35ft. Coil Hose with Tire Chuck
– 1/4” Quick Connect Stud (F)
– 1/4” Quick Connect Coupler (F)
– Dash Panel Gauge with ON/OFF Switch
– Pressure Switch with Relay (110 PSI on, 145 PSI off)
– Reducer: 1/8” (F) to 1/4” (M)
– 1/4” 175 PSI Safety Valve
– 1/4” Drain Cock
– (3) 1/4” Compression Fittings
– 20ft. 12-Gauge Wire with Inline Fuse Holder
– 4” Strip of Continuous Grommet Material
– Accessory Airline
– Electrical Connections

SPECIFICATIONS
– 12-Volt
– Permanent Magnetic Motor
– Duty Cycle: 33% @ 100 PSI
– Max. Working Pressure: 150 PSI
– 1/4” Quick Connect Coupler (F)
– Max. Amp Draw: 28 Amps
– Ingress Protection Rating: IP67

All Fittings are NPT rated unless otherwise noted.



PERFORMANCE DATA
PSI CFM A BAR LPM A
0 2.62 15 0 74 16
10 2.39 18 1.0 65.0 20
20 2.21 20 2.0 60.0 23
30 2.11 22 3.0 56.0 25
40 2.01 24 4.0 53.0 27
50 1.93 25 5.0 49.0 28
60 1.84 26 6.0 46.0 28
70 1.73 27 7.0 42.0 28
80 1.65 27 8.0 38.0 28
90 1.52 27 9.0 35.0 27
100 1.45 27 10.0 31.0 27
110 1.35 27
120 1.26 27
130 1.19 27
140 1.08 27
150 1.01 26
* Supply Voltage: 13.8 Volts

FILL RATES

2.5 GALLON TANK FILL RATE
0 to 145 PSI 2 min. 20 sec. (± 05 sec.)
110 to 145 PSI 48 sec. (± 03 sec.)

33? X 12.5? FILL RATE
0 to 30 PSI 4 min. 20 sec. (± 10 sec.)
15 to 30 PSI 2 min. 05 sec. (± 05 sec.)

35? X 12.5? FILL RATE
0 to 30 PSI 5 min. 20 sec. (± 15 sec.)
15 to 30 PSI 2 min. 45 sec. (± 10 sec.)
80 to 90 PSI 30 sec. (± 05 sec.)
90 to 100 PSI 3 min. 50 sec. (± 10 sec.)
110 to 130 PSI 4 min. 37 sec. (± 15 sec.)

RV TIRES 275/80R22.5 FILL RATE
80 to 90 PSI 30 sec. (± 05 sec.)
90 to 100 PSI 3 min. 50 sec. (± 10 sec.)
110 to 130 PSI 4 min. 37 sec. (± 15 sec.)
