VIAIR X'treme Duty Onboard Air System (12V, 150 PSI Compressors, 2.0 Gal. Tank) *37" Tires & Larger - 10009

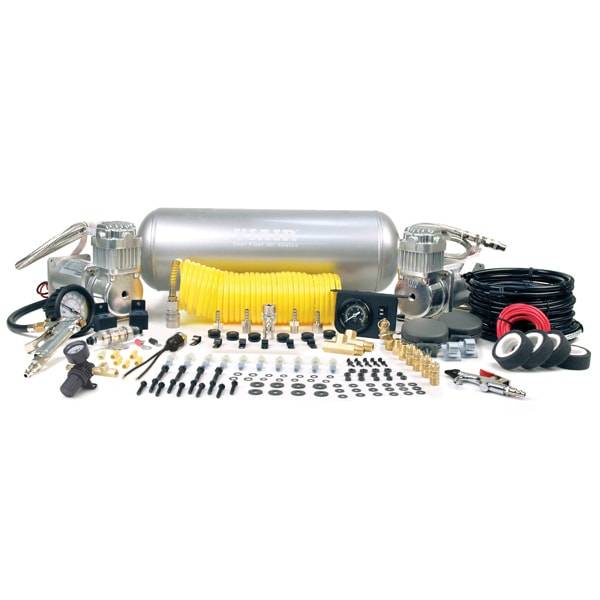

VIAIR’s X’treme Duty Onboard Air System is a pre-packaged compressed air solution that provides two 350C, 100% duty cycle compressors, a2.0 gallon air tank, inline pressure regulation, and all components needed to install a working system capable of inflating tires, managing air locking differentials, and more.

Please Note: Use thread sealant for proper installation. Teflon tape is not recommended. Properly sealed, recommended torque for 1/8? is 10 ~ 11 ft. lbs. Recommended torque for 1/4? and 3/8? is 12 ~ 15 ft. lbs.



FEATURES
– 2.0 Gallon VIAIR Air Tank
– (2) 350C VIAIR Compressors
– 30ft. Coil Hose with Quick Connects
– Tire Inflation Gun with 160 PSI Gauge
– Dash Panel Gauge with ON/OFF Switch
– 0-220 PSI Pressure Regulator
– Blow Gun Air Tool
– Sealed Pressure Switch (110 PSI on, 145 PSI off)
– (2) 40-amp Relays
– (2) T-Fittings (1/4” (M) x 1/4? (F) x 1/8” (F))
– 1/4” Quick Connect Stud (F)
– 1/4” Quick Connect Coupler (F)
– 1/4” 175 PSI Safety Valve
– 1/4” Drain Cock
– (2) 1/8” BSP to 1/4” NPT
– (4) 1/4” Compression Fittings
– 20ft. 12-Gauge Wire with Inline Fuse Holder
– 4” Strip of Continuous Grommet Material
– Accessory Airline
– Electrical Connections

SPECIFICATIONS
– 12-Volt
– Permanent Magnetic Motor
– Duty Cycle: 100% @ 100 PSI
– Max. Working Pressure: 150 PSI
– Max. Amp Draw: 37 Amps
– Ingress Protection Rating: IP67
–
All Fittings are NPT rated unless otherwise noted.



PERFORMANCE DATA
PSI CFM A BAR LPM A
0 2.68 23 0 76.0 23
10 2.30 26 1.0 64.0 28
20 2.22 29 2.0 60.0 31
30 2.12 31 3.0 55.0 34
40 1.98 33 4.0 51.5 35
50 1.87 34 5.0 48.0 36
60 1.80 35 6.0 45.5 37
70 1.73 35 7.0 43.0 37
80 1.66 36 8.0 40.0 37
90 1.56 36 9.0 36.0 37
100 1.52 37 10.0 31.5 37
110 1.45 37
120 1.38 37
130 1.27 37
140 1.17 37
150 1.06 37
* Supply Voltage: 13.8 Volts

FILL RATES

2.0 GALLON TANK FILL RATE
0 to 145 PSI 1 min. 40 sec. (± 05 sec.)
110 to 145 PSI 32 sec. (± 03 sec.)

35? X 12.5? FILL RATE
0 to 30 PSI 4 min. 40 sec. (± 10 sec.)
15 to 30 PSI 2 min. 20 sec. (± 05 sec.)

37? X 12.5? FILL RATE
0 to 30 PSI 5 min. 00 sec. (± 15 sec.)
15 to 30 PSI 2 min. 40 sec. (± 10 sec.)
