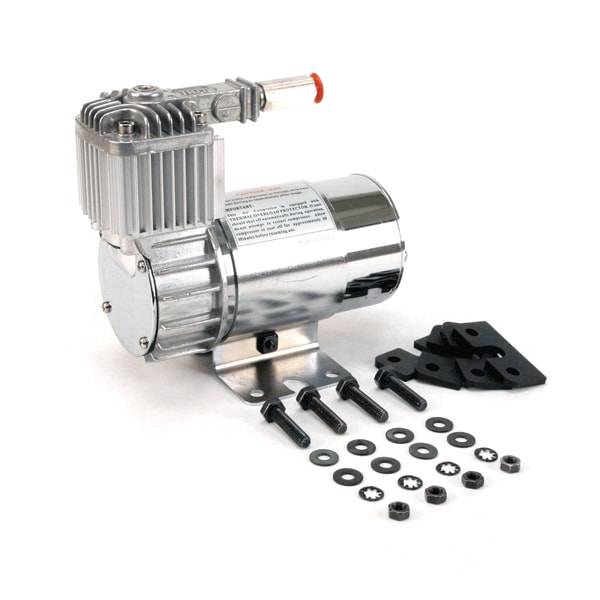

VIAIR 100C Chrome Compressor Kit w/ Omega Mounting Bracket (12V, CE, 15% Duty, Sealed) - 10016

VIAIR’s 100 Series with omega-style bracket is a bare compressor that comes standard with a chrome motor housing and chrome end plates. Insulated wiring is pre-installed. This compressor does not come equipped with a leader hose but does come with an inline check valve.

Note: Use thread sealant for proper installation. Teflon tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lbs.

FEATURES
– Omega Bracket
– Check Valve
– Vibration Isolators
– Mounting Hardware
– Installation Instructions
–
–
–
–
SPECIFICATIONS
– 12-Volt
– Permanent Magnetic Motor
– Duty Cycle: 15% @ 100 PSI
– Max. Working Pressure: 130 PSI
– Max. Air Tank Size: 1.0 Gallon
– Max. 12V Amp Draw: 14 Amps
– Ingress Protection Rating: IP54
– Dimensions: 6.0?L x 3.5?W x 5.3?H
– Net Weight: 3.45 lbs.
RECOMMENDED COMPONENTS
– 0.5 Gallon Tank (P/N 91005)
– 1.0 Gallon Tank (P/N 91010, 91014)
– 12V Relay (P/N 93940)
– Pressure Switches (P/N 90100, 90101)
– Pressure Switches with Relay (P/N 90110, 90113)
– Leader Hose without Check Valve (P/N 92801)
– Leader Hose with Check Valve (P/N 92807)

PERFORMANCE DATA
PSI CFM A BAR LPM A
0 1.27 9 0 36.0 9
10 0.90 10 1.0 25.0 10
20 0.85 11 2.0 22.5 11
30 0.79 11 3.0 21.0 12
40 0.76 12 4.0 20.0 13
50 0.72 12 5.0 18.3 12
60 0.71 13 6.0 17.0 12
70 0.67 13 7.0 15.0 12
80 0.64 12 8.0 13.7 12
90 0.59 12 9.0 12.3 12
100 0.55 12
110 0.52 12
120 0.48 12
130 0.45 12
* Supply Voltage: 13.8 Volts

FILL RATES
0.5 GALLON TANK FILL RATE
0 to 105 PSI 50 sec. (± 05 sec.)
85 to 105 PSI 10 sec. (± 03 sec.)
0 to 120 PSI 1 min. 00 sec. (± 05 sec.)
90 to 120 PSI 17 sec. (± 03 sec.)
1.0 GALLON TANK FILL RATE
0 to 105 PSI 1 min. 40 sec. (± 10 sec.)
85 to 105 PSI 25 sec. (± 05 sec.)
0 to 120 PSI 2 min. 00 sec. (± 10 sec.)
90 to 120 PSI 35 sec. (± 05 sec.)
