VIAIR 200 PSI Ultra Duty Onboard Air System (12V, CE, 200 PSI Compressor, 2.5 Gal Tank) *For up to 37" Tires*- 20001

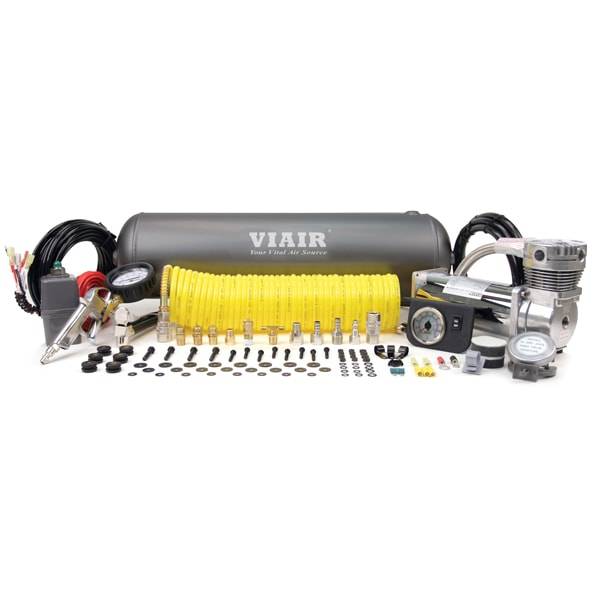

VIAIR’s Ultra Duty Onboard Air System is a pre-packaged compressed air solution that provides an industry-leading, 200 PSI rated, 100% duty cycle 480C compressor,2.5 gallon air tank, and all components needed to install a working system capable of inflating tires of virtually any size.

Please Note: Use thread sealant for proper installation. Teflon tape is not recommended. Properly sealed, recommended torque for 1/8? is 10 ~ 11 ft. lbs. Recommended torque for 1/4? and 3/8? is 12 ~ 15 ft. lbs.

FEATURES
– 2.5 Gallon 200 PSI VIAIR Air Tank
– 480C Chrome VIAIR Air Compressor
– Tire Inflation Gun with 200 PSI Gauge
– Dash Panel Gauge with ON/OFF Switch
– 30ft. Coil Hose with Quick Connects
– Pressure Switch (165 PSI on, 200 PSI off)
– Reducer: 1/8” (F) to 1/4” (M)
– Reducer: 3/8” (F) to 1/4” (M)
– 1/4” Quick Connect Stud (F)
– 1/4” Quick Connect Coupler (F)
– 1/4” 250 PSI Safety Valve
– 1/4” Drain Cock
– (3) 1/4” Compression Fittings
– 20ft. 12-Gauge Wire with Inline Fuse Holder
– 4” Strip of Continuous Grommet Material
– Accessory Airline
– Electrical Connections
SPECIFICATIONS
– 12-Volt
– Permanent Magnetic Motor
– Duty Cycle: 100% @ 100 PSI
– Max. Working Pressure: 200 PSI
– Max. Amp Draw: 23 Amps
– Ingress Protection Rating: IP67
All Fittings are NPT rated unless otherwise noted.

PERFORMANCE DATA
PSI CFM A BAR LPM A
0 1.86 10 0 52.7 10
10 1.75 12 1.0 47.5 13
20 1.59 14 2.0 43.2 15
30 1.52 15 3.0 40.7 16
40 1.45 16 4.0 38.1 18
50 1.41 17 5.0 35.3 18
60 1.33 18 6.0 32.6 19
70 1.26 18 7.0 30.0 20
80 1.20 19 8.0 27.0 22
90 1.13 19 9.0 25.0 22
100 1.07 20 10.0 22.3 21
110 0.99 21 11.0 20.1 21
120 0.93 23 12.0 18.3 21
130 0.88 22 13.0 16.0 20
140 0.82 22 14.0 14.0 19
150 0.75 21
160 0.71 21
170 0.67 21
180 0.61 21
190 0.55 20
200 0.51 19
* Supply Voltage: 13.8 Volts

FILL RATES
2.5 GALLON TANK FILL RATE
0 to 200 PSI 5 min. 02 sec. (± 10 sec.)
165 to 200 PSI 1 min. 30 sec. (± 05 sec.)
35? X 12.5? FILL RATE
0 to 30 PSI 6 min. 15 sec. (± 15 sec.)
15 to 30 PSI 3 min. 15 sec. (± 10 sec.)
37? X 12.5? FILL RATE
0 to 30 PSI 7 min. 00 sec. (± 15 sec.)
15 to 30 PSI 3 min. 40 sec. (± 10 sec.)
