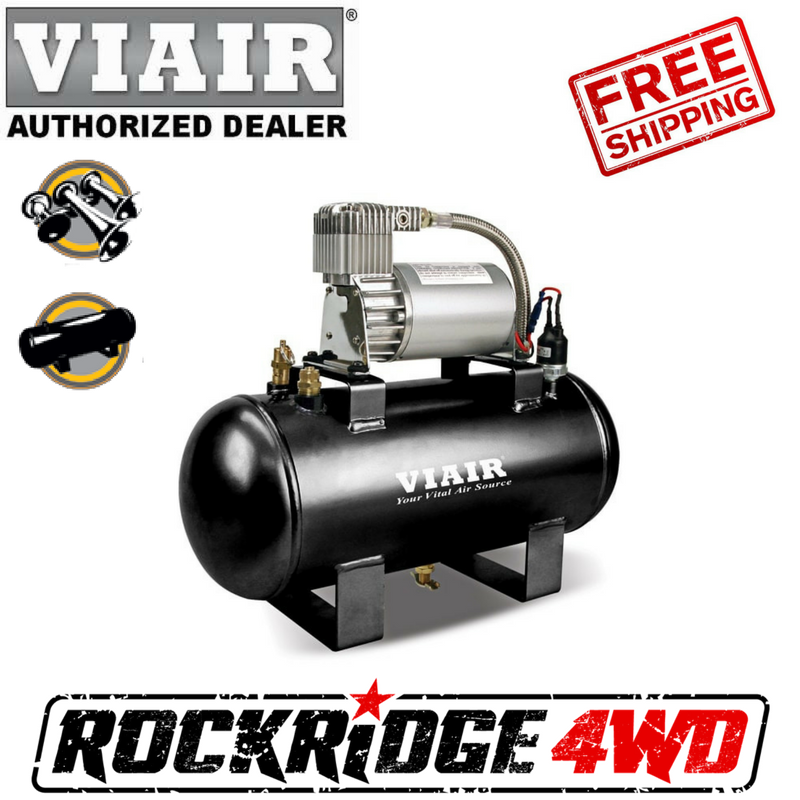

VIAIR 1.5 Gal. Tank Air Source Kit Fast Fill-120 (12V, 120 PSI Compressor) - 20003

120 PSI Air Source Kits come with a low amp-draw, 25% duty cycle, 275C VIAIR compressor mounted on a 150 PSI-rated 1.5 gallon air tank with 5 ports. 120 PSI Air Source kits come with a pre-wired 90 PSI on / 120 PSI off pressure switch. The 120 PSI Air Source Kit comes complete with a 1/4” NPT brass drain cock, 1/4” NPT ASME coded and certified safety valve, 1/2” NPT port compression fitting for 3/8” (I.D.) air line pre-installed. To use, simply connect the pressure switch to fused power, make a solid ground, and connect an air line to the compression fitting. The use of a 40-amp relay and an appropriately-rated fuse is strongly recommended to preserve the life of the pressure switch.

FEATURES
– 275C Pewter Air Compressor
– 1.5 Gallon Air Tank
– Pressure Switch (90 PSI On / 120 PSI Off)
– Safety Valve (145 PSI)
– Drain Cock
– Leader Hose with Check Valve
–
–
SPECIFICATIONS
– 12-Volt
– Permanent Magnetic Motor
– Duty Cycle: 25% @ 100 PSI
– Max. Working Pressure: 120 PSI
– Max. Amp Draw: 19 Amps
– Ingress Protection Rating: IP54
– Dimensions: 15.2?L x 5.9?W x 12.8?H
– Net Weight: 15.65 lbs.

PERFORMANCE DATA
PSI CFM A BAR LPM A
0 2.03 10 0 57.5 10
10 1.17 12 1.0 32.0 13
20 1.11 13 2.0 30.0 14
30 1.04 15 3.0 28.5 16
40 1.01 15 4.0 26.5 16
50 0.97 16 5.0 24.5 17
60 0.92 16 6.0 22.5 17
70 0.88 17 7.0 21.5 18
80 0.83 17 8.0 20.0 18
90 0.79 17 9.0 18.5 18
100 0.76 18 10 17.0 17
110 0.72 19
120 0.67 18
* Supply Voltage: 13.8 Volts

FILL RATES
1.5 GALLON TANK FILL RATE
0 to 120 PSI 2 min. 10 sec. (±10 Sec.)
90 to 120 PSI 35 sec. (± 5 Sec.)
