VIAIR 200 PSI 2.0 Gal. Tank Fast-Fill-200 Air Source Kit (12V, 200 PSI Compressor) - 20007

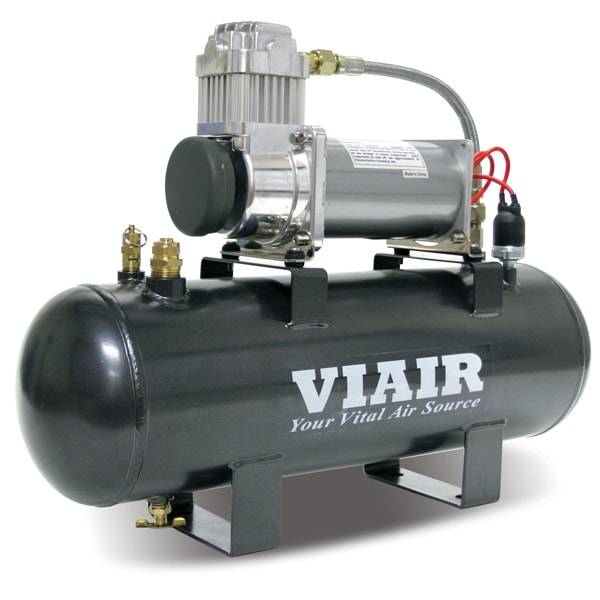

Fast-Fill 200 PSI Air Source Kits come with a powerful, low amp-draw 380C VIAIR compressor mounted on a 200 PSI-rated 2.0 gallon air tank with 5 ports. All 200 PSI Air Source kits come with a pre-wired 165/200 PSI pressure switch. Both kits not only come with the industry’s leading 200 PSI compressors but also come with a drain cock, safety valve, 1/2-inch port compression fitting for 3/8? (I.D.) air line pre-installed! To use, simply connect the pressure switch to fused power, make a solid ground, and connect an air line to the compression fitting. A 40-amp relay and an appropriately-rated fuse is recommended for use with this unit.

FEATURES
– 380C Pewter Air Compressor
– 2.0 Gallon Air Tank
– Pressure Switch (165 PSI On / 200 PSI Off)
– Safety Valve (250 PSI)
– Drain Cock
– Leader Hose with Check Valve
–
–
SPECIFICATIONS
– 12-Volt
– Permanent Magnetic Motor
– Duty Cycle: 100% @ 100 PSI (55% @ 200 PSI)
– Max. Working Pressure: 200 PSI
– Max. Amp Draw: 23 Amps
– Ingress Protection Rating: IP67
– Dimensions: 19?L x 5.9?W x 14.2?H
– Net Weight: 21.05 lbs.

PERFORMANCE DATA
PSI CFM A BAR LPM A
0 1.58 12 0 44.7 12
10 1.45 13 1.0 38.1 13
20 1.22 14 2.0 33.3 15
30 1.17 15 3.0 30.6 16
40 1.09 17 4.0 29.1 17
50 1.06 17 5.0 27.1 18
60 1.02 17 6.0 25.3 19
70 0.97 18 7.0 24.0 20
80 0.92 18 8.0 22.4 21
90 0.88 19 9.0 21.0 23
100 0.85 20 10.0 19.5 21
110 0.81 21 11.0 18.2 20
120 0.78 22 12.0 16.7 19
130 0.74 23 13.0 15.2 19
140 0.71 21 14.0 13.5 18
150 0.67 20
160 0.64 20
170 0.60 19
180 0.57 19
190 0.53 19
200 0.49 18
* Supply Voltage: 13.8 Volts

FILL RATES
2.0 GALLON TANK FILL RATE
0 to 200 PSI 5 min. 30 sec. (± 10 sec.)
165 to 200 PSI 1 min. 25 sec. (± 05 sec.)
