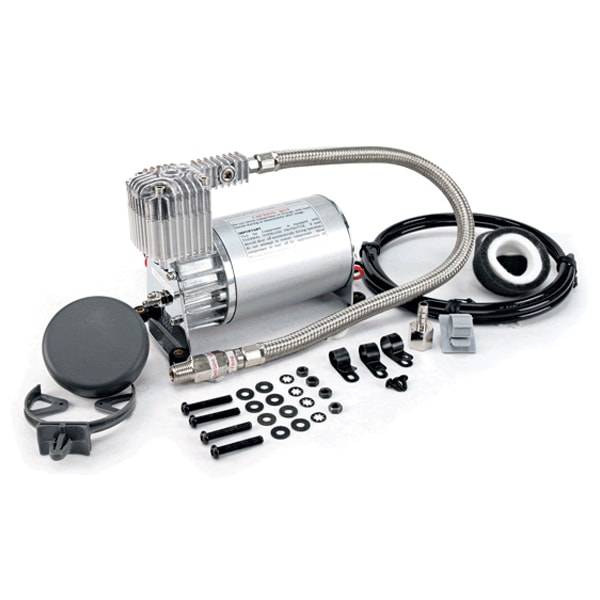

VIAIR 275C Compressor Kit (12V, CE, 25% Duty, Sealed) - 27520

275C features include a stainless steel braided leader hose with 1/4” NPT swivel male fitting hose end and rubber isolated mounting feet as well as insulated electric terminals.

Note: Use thread sealant for proper installation. Teflon tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lbs.

FEATURES
– Check Valve
– Vibration Isolators
– Mounting Hardware
– Stainless Steel Braided Leader Hose
– Air Line for Remote Mount Air Filter
– Remote Mount Air Filter Assembly
– (2) Replacement Air Filter Elements
– Installation Instructions
–
SPECIFICATIONS
– 12-Volt
– Permanent Magnetic Motor
– Duty Cycle: 25% @ 100 PSI
– Max. Working Pressure: 150 PSI
– Max. Air Tank Size: 2.5 Gallon
– Max. 12V Amp Draw: 18 Amps
– Ingress Protection Rating: IP54
– Dimensions: 6.5?L x 3.5?W x 4.5?H
– Net Weight: 5.20 lbs.

RECOMMENDED COMPONENTS
– 0.5 Gallon Tank (P/N 91005)
– 1.0 Gallon Tank (P/N 91010, 91014)
– 2.0 Gallon Tank (P/N 91022)
– 2.5 Gallon Tank (P/N 91025)
– 12V Relay (P/N 93940)
– Pressure Switches (P/N 90100, 90101, 90102)
– Pressure Switches with Relay (P/N 90110, 90111, 90113)
– Sealed Pressure Switches (P/N 90217, 90223, 90227)

PERFORMANCE DATA
PSI CFM A BAR LPM A
0 2.03 10 0 57.5 10
10 1.17 12 1.0 32.0 13
20 1.11 13 2.0 30.0 14
30 1.04 15 3.0 28.5 16
40 1.01 15 4.0 26.5 16
50 0.97 16 5.0 24.5 17
60 0.92 16 6.0 22.5 17
70 0.88 17 7.0 21.5 18
80 0.83 17 8.0 20.0 18
90 0.79 17 9.0 18.5 18
100 0.76 18 10.0 17.0 17
110 0.72 18
120 0.69 18
130 0.65 18
140 0.62 17
150 0.57 17
* Supply Voltage: 13.8 Volts

FILL RATES
1.0 GALLON TANK FILL RATE
0 to 105 PSI 1 min. 05 sec. (± 05 sec.)
85 to 105 PSI 14 sec. (± 03 sec.)
0 to 145 PSI 1 min. 45 sec. (± 05 sec.)
110 to 145 PSI 30 sec. (± 03 sec.)

2.5 GALLON TANK FILL RATE
0 to 105 PSI 2 min. 45 sec. (± 10 sec.)
85 to 105 PSI 40 sec. (± 05 sec.)
0 to 145 PSI 4 min. 30 sec. (± 10 sec.)
110 to 145 PSI 1 min. 35 sec. (± 05 sec.)
