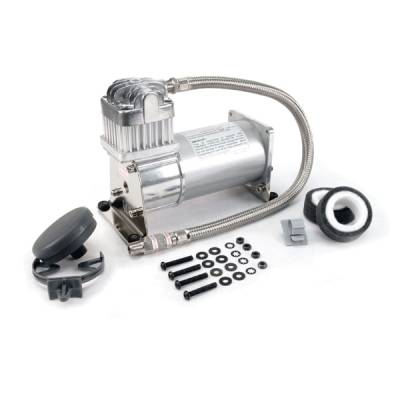

VIAIR 280C Compressor Kit (12V, CE 30% Duty, Sealed) - 28021

280C features include a standard 1/4” NPT stainless steel braided leader hose with inline check valve and insulated wiring for simple installation.

Note: Use thread sealant for proper installation. Teflon tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lbs.

FEATURES
– Check Valve
– Vibration Isolators
– Mounting Hardware
– Stainless Steel Braided Leader Hose
– Direct Air Filter Assembly
– (2) Replacement Air Filter Elements
– Installation Instructions
–
–
SPECIFICATIONS
– 12-Volt
– Permanent Magnetic Motor
– Duty Cycle: 30% @ 100 PSI
– Max. Working Pressure: 150 PSI
– Max. Air Tank Size: 2.5 Gallon
– Max. 12V Amp Draw: 19 Amps
– Ingress Protection Rating: IP54
– Dimensions: 7.8?L x 3.95?W x 6.35?H
– Net Weight: 6.95 lbs.

RECOMMENDED COMPONENTS
– 0.5 Gallon Tank (P/N 91005)
– 1.0 Gallon Tank (P/N 91010, 91014)
– 2.0 Gallon Tank (P/N 91022)
– 2.5 Gallon Tank (P/N 91025)
– 12V Relay (P/N 93940)
– Pressure Switches (P/N 90100, 90101, 90102)
– Pressure Switches with Relay (P/N 90110, 90111, 90113)
– Sealed Pressure Switches (P/N 90217, 90223, 90227)

PERFORMANCE DATA
PSI CFM A BAR LPM A
0 1.59 10 0 45.0 10
10 1.49 12 1.0 40.2 13
20 1.33 13 2.0 32.1 14
30 1.11 14 3.0 29.0 15
40 1.04 15 4.0 26.4 16
50 0.99 15 5.0 24.2 16
60 0.92 16 6.0 22.0 17
70 0.87 16 7.0 21.0 19
80 0.81 17 8.0 19.4 18
90 0.76 17 9.0 17.5 17
100 0.74 19 10.0 15.3 17
110 0.71 19
120 0.67 18
130 0.62 17
140 0.57 17
150 0.51 17
* Supply Voltage: 13.8 Volts

FILL RATES

1.0 GALLON TANK FILL RATE
0 to 105 PSI 1 min. 10 sec. (± 05 sec.)
85 to 105 PSI 20 sec. (± 03 sec.)
0 to 145 PSI 1 min. 40 sec. (± 05 sec.)
110 to 145 PSI 35 sec. (± 03 sec.)

2.5 GALLON TANK FILL RATE
0 to 105 PSI 2 min. 35 sec. (± 10 sec.)
85 to 105 PSI 44 sec. (± 05 sec.)
0 to 145 PSI 4 min. 30 sec. (± 10 sec.)
110 to 145 PSI 1 min. 36 sec. (± 05 sec.)
