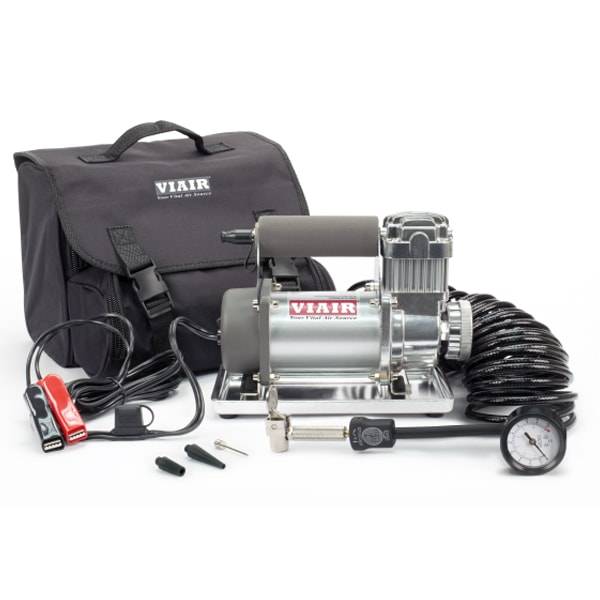

Viair 300P Portable Compressor Kit (12V, CE, 33% Duty, 150 PSI, 30 Min. @ 30 PSI) - 30033

300P is a larger portable compressor kit that is capable of inflating up to 33-inch tires easily by simply clamping the power leads to your battery, connecting the tire chuck to the valve stem and turning the unit on. Tire pressure can be checked using the 5-in-1 Inflator/Deflator inline pressure gauge.

Please Note: The air hose supplied with this kit may become brittle from prolonged exposure to UV/sunlight. – Stow when not in use. Never allow the hose to come into contact with the head of the compressor during use (melting hazard). The use of the included air hose is not recommended in sub zero or freezing conditions. The 300P does not work with Presta bicycle valves.

FEATURES
– 5-in-1 Inflator/Deflator Air Hose with Inline 100 PSI Gauge
– Aluminum Sand Tray with Vibration Isolators
– Deluxe Dual Compartment Carry Bag
– 40-amp Inline Fuse Holder
– Dual Battery Clamps
– 3 pc. Inflation Tips Kit
–
–
–
–
SPECIFICATIONS
– 12-Volt
– Permanent Magnetic Motor
– Duty Cycle: 33% @ 100 PSI
– Max. Working Pressure: 150 PSI
– Max. Amp Draw: 30 Amps
– Ingress Protection Rating: IP54
– Dimensions: 9?L x 4.9?W x 7.5?H
– Net Weight: 8.70 lbs.
– Power Cord Length: 8 ft.
– Air Hose Length: 25 ft.


PERFORMANCE DATA
PSI CFM A BAR LPM A
0 2.30 17 0 65.0 17
10 1.94 21 1.0 52.6 22
20 1.76 23 2.0 46.3 24
30 1.62 24 3.0 40.5 26
40 1.48 25 4.0 35.7 27
50 1.34 27 5.0 31.0 27
60 1.24 27 6.0 26.6 28
70 1.13 27 7.0 23.6 29
80 0.99 28 8.0 19.1 30
90 0.92 28 9.0 15.8 29
100 0.85 29 10.0 14.0 28
110 0.74 30
120 0.63 30
130 0.56 29
140 0.53 28
150 0.46 27
* Supply Voltage: 13.8 Volts

FILL RATES

31? X 10.5? FILL RATE
0 to 30 PSI 3 min. 25 sec. (± 10 sec.)
15 to 30 PSI 2 min. 00 sec. (± 05 sec.)

33? X 12.5? FILL RATE
0 to 30 PSI 5 min. 00 sec. (± 10 sec.)
15 to 30 PSI 2 min. 45 sec.(± 05 sec.)
