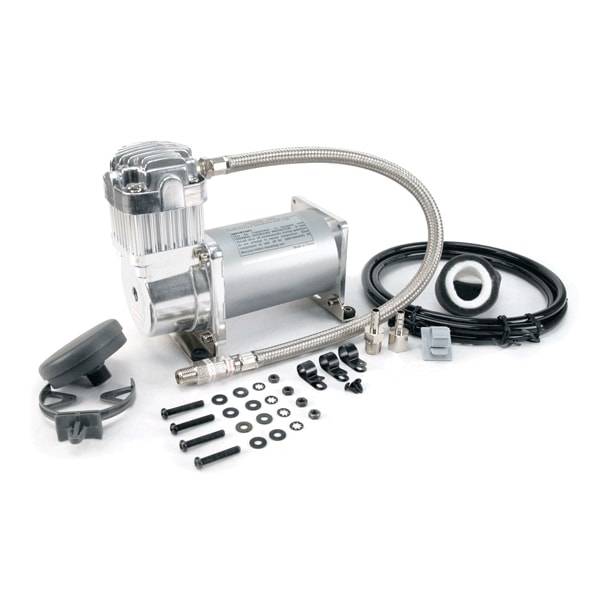

VIAIR 325C Compressor Kit (12V, CE, 33% Duty, Sealed) - 32530

325C-12V & 24V are compressors that work with low amp draw. Features include a standard 1/4? NPT stainless steel braided leader hose with check valve and insulated wiring for simple installation.

Note: Use thread sealant for proper installation. Teflon tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lbs.

FEATURES
– Check Valve
– Vibration Isolators
– Mounting Hardware
– Stainless Steel Braided Leader Hose
– Air Line for Remote Mount Air Filter
– Remote Mount Air Filter Assembly
– (2) Replacement Air Filter Elements
– Installation Instructions
–
–
–
SPECIFICATIONS
– 12-Volt / 24-Volt
– Permanent Magnetic Motor
– Duty Cycle: 33% @ 100 PSI
– Max. Working Pressure: 150 PSI
– Max. Air Tank Size: 5.0 Gallon
– Max. 12V Amp Draw: 21 Amps
– Max. 24V Amp Draw: 13 Amps
– 1/4? NPT Intake Port
– Ingress Protection Rating: IP67
– Dimensions: 8?L x 4?W x 6.75?H
– Net Weight: 7.5 lbs.

RECOMMENDED COMPONENTS
– 2.5 Gallon Tank (P/N 91028)
– 5.0 Gallon Tank (P/N 91050)
– 12V Relay (P/N 93940*)
– 24V Relay (P/N 93943**)
– Pressure Switches (P/N 90100, 90102)
– Pressure Switches with Relay (P/N 90110*, 90111, 90113)
– Sealed Pressure Switches (P/N 90217, 90223, 90227)
– Leader Hose with Check Valve (P/N 92793)

PERFORMANCE DATA
12-VOLT COMPRESSOR
PSI CFM A BAR LPM A
0 1.59 14 0 45.0 14
10 1.40 16 1.0 37.6 16
20 1.24 16 2.0 34.1 18
30 1.20 18 3.0 32.3 18
40 1.17 18 4.0 29.1 20
50 1.08 19 5.0 26.0 21
60 1.01 20 6.0 23.7 21
70 0.93 21 7.0 21.5 21
80 0.87 21 8.0 19.7 21
90 0.82 21 9.0 18.0 21
100 0.77 21 10.0 16.5 21
110 0.72 21
120 0.68 21
130 0.64 21
140 0.60 21
150 0.57 21

FILL RATES
12-VOLT COMPRESSOR
2.5 GALLON TANK FILL RATE
0 to 105 PSI 2 min. 35 sec. (± 10 sec.)
85 to 105 PSI 40 sec. (± 05 sec.)
0 to 145 PSI 4 min. 15 sec. (± 10 sec.)
110 to 145 PSI 1 min. 25 sec. (± 05 sec.)
5.0 GALLON TANK FILL RATE
0 to 105 PSI 5 min. 15 sec. (± 10 sec.)
85 to 105 PSI 1 min. 25 sec. (± 05 sec.)
0 to 145 PSI 8 min. 45 sec. (± 15 sec.)
110 to 145 PSI 2 min. 55 sec. (± 10 sec.)
