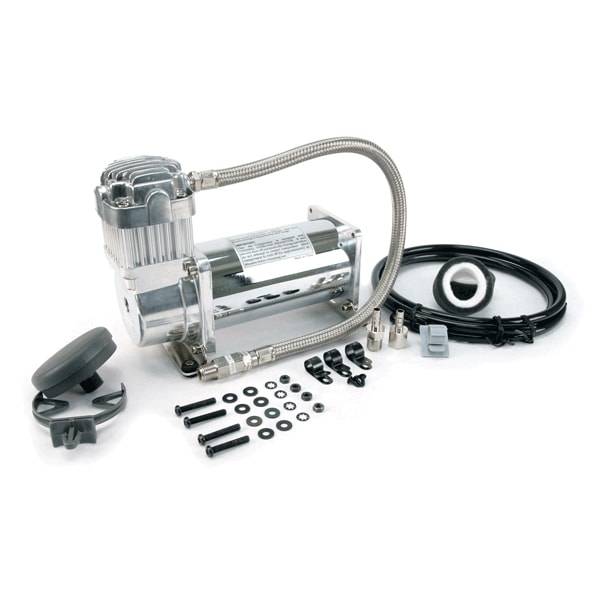

VIAIR 350C Chrome Compressor Kit (12V, 100% Duty, Sealed) - 35033

350C operates using low amp draw so they’re versatile for many mobile pneumatic applications. Features include a standard 1/4” NPT stainless steel braided leader hose with inline check valve and insulated wiring for simple installation.

Note: Use thread sealant for proper installation. Teflon tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lbs.



FEATURES
– Check Valve
– Vibration Isolators
– Mounting Hardware
– Stainless Steel Braided Leader Hose
– Air Line for Remote Mount Air Filter
– Remote Mount Air Filter Assembly
– (2) Replacement Air Filter Elements
– Installation Instructions
–
SPECIFICATIONS
– 12-Volt
– Permanent Magnetic Motor
– Duty Cycle: 100% @ 100 PSI
– Max. Working Pressure: 150 PSI
– Max. Air Tank Size: 5.0 Gallon
– Max. 12V Amp Draw: 20 Amps
– Ingress Protection Rating: IP67
– Dimensions: 7.4?L x 4?W x 6.75?H
– Net Weight: 8.55 lbs.
RECOMMENDED COMPONENTS
– 0.5 Gallon Tank (P/N 91005)
– 1.0 Gallon Tank (P/N 91010)
– 2.0 Gallon Tank (P/N 91022)
– 2.5 Gallon Tank (P/N 91025)
– 5.0 Gallon Tank (P/N 91050)
– 12V Relay (P/N 93940)
– Pressure Switches (P/N 90100, 90102)
– Pressure Switches with Relay (P/N 90110, 90111)
– Sealed Pressure Switches (P/N 90217, 90223, 90227)


PERFORMANCE DATA
PSI CFM A BAR LPM A
0 1.52 12 0 43.0 12
10 1.42 13 1.0 38.7 14
20 1.30 15 2.0 29.7 16
30 1.02 16 3.0 27.6 17
40 0.99 17 4.0 26.2 18
50 0.95 17 5.0 24.7 18
60 0.92 18 6.0 23.0 19
70 0.88 18 7.0 21.4 20
80 0.85 18 8.0 20.0 20
90 0.79 19 9.0 18.6 19
100 0.76 20 10.0 16.0 19
110 0.72 20
120 0.69 20
130 0.66 19
140 0.59 19
150 0.54 19
