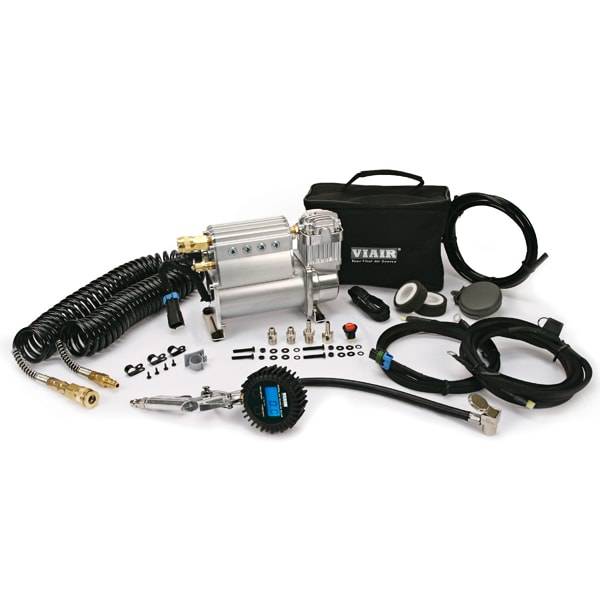

VIAIR UNIVERSAL ADA / AUTOMATIC DEPLOYMENT AIR SYSTEM WITH 400C COMPRESSOR - 40049

Using a 33% (Heavy Duty) duty cycle 400C compressor, tire inflation or air locker actuation is made possible in a very compact space. Each ADA System comes complete with an onboard pressure switch, automatic coupler and a Digital Tire Inflation Kit. Additionally, a wiring harness is included to make the installation a plug & play process, with very little install time required.



FEATURES
– 400C Compressor
– Extruded Aluminum Air Tank (12-port)
– Toggle Switch
– Air Line for Remote Mount Air Filter Installation
– (2) Remote Mount Air Filter Relocation Fittings
– 1/8” NPT Drain Cock
– 1/4” NPT Safety Valve
– (8) 1/4” NPT Hex Plug
– 1/4” NPT Sealed Pressure Switch (85/105 PSI)
– (2) 1/4” NPT BSP Adapter
– 1/4” NPT Automatic Coupler

SPECIFICATIONS
– 12-Volt
– Permanent Magnetic Motor
– Duty Cycle: 33% @ 100 PSI
– Max. Working Pressure: 150 PSI
– Max. Amp Draw: 30 Amps
– Ingress Protection Rating: IP67
– Dimensions: 9.38?L x 4?W x 6.75?H
– Net Weight: 10 lbs.
–
WIRING HARNESS
– 30-amp Delphi Connector Set
– 60-amp Fuse Holder
– 40-amp Fuse
– (2) 1/4” Ring Terminal
– 5/16” Ring Terminal
– (3) Female Spade Terminal Connector

DIGITAL TIRE INFLATION KIT
– 30’ Inflation Hose with Automatic Couplers
– Digital Tire Inflation Gun
–
PERFORMANCE DATA
PSI CFM A BAR LPM A
0 2.30 17 0 65.1 17
10 2.13 19 1.0 58.4 20
20 1.98 21 2.0 53.0 23
30 1.86 23 3.0 48.5 24
40 1.75 24 4.0 44.2 26
50 1.64 25 5.0 40.2 27
60 1.54 26 6.0 37.0 28
70 1.44 27 7.0 33.3 29
80 1.37 27 8.0 30.1 28
90 1.28 28 9.0 27.0 28
100 1.19 29 10.0 22.1 27
110 1.11 29
120 1.04 28
130 0.95 28
140 0.85 27
150 0.71 27
* Supply Voltage: 13.8 Volts

FILL RATES
31” X 10.5” FILL RATE
0 to 30 PSI 3 min. 00 sec. (± 10 sec.)
15 to 30 PSI 1 min. 35 sec. (± 05 sec.)

33” X 12.5? FILL RATE
0 to 30 PSI 4 min. 20 sec. (± 10 sec.)
15 to 30 PSI 2 min. 05 sec. (± 05 sec.)

35” X 12.5” FILL RATE
0 to 30 PSI 5 min. 20 sec. (± 15 sec.)
15 to 30 PSI 2 min. 45 sec. (± 10 sec.)
