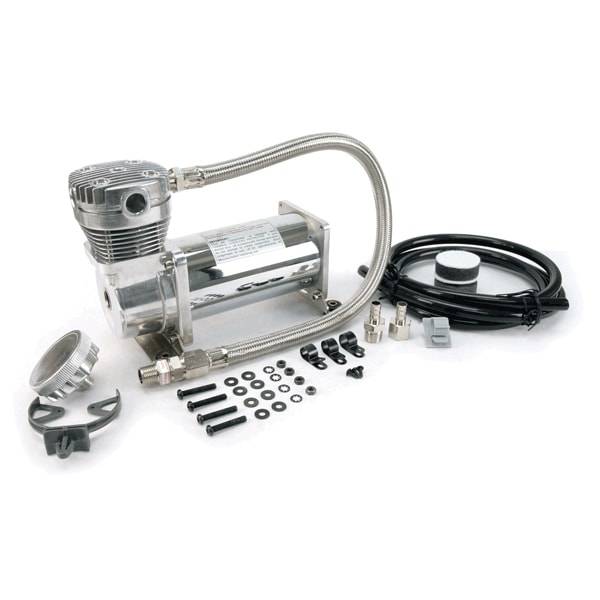

VIAIR 420C Chrome Compressor Kit, 3/8" Port (12V, CE, 33% Duty, Sealed) - 42042

420C features include horizontal cooling fins and a trapezoidal head design, a standard 3/8” NPT stainless steel braided leader hose with inline check valve and insulated wiring for simple installation.

Note: Use thread sealant for proper installation. Teflon tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lbs.



FEATURES
– Check Valve
– Vibration Isolators
– Mounting Hardware
– Stainless Steel Braided Leader Hose
– Air Line for Remote Mount Air Filter
– Remote Mount Air Filter Assembly
– (2) Replacement Air Filter Elements
– Installation Instructions
–
SPECIFICATIONS
– 12-Volt
– Permanent Magnetic Motor
– Duty Cycle: 33% @ 100 PSI
– Max. Working Pressure: 150 PSI
– Max. Air Tank Size: 5.0 Gallon
– Max. 12V Amp Draw: 28 Amps
– Ingress Protection Rating: IP67
– Dimensions: 10?L x 4.3?W x 6.5?H
– Net Weight: 9.00 lbs.
RECOMMENDED COMPONENTS
– 0.5 Gallon Tank (P/N 91005)
– 1.0 Gallon Tank (P/N 91010)
– 2.0 Gallon Tank (P/N 91022)
– 2.5 Gallon Tank (P/N 91025)
– 5.0 Gallon Tank (P/N 91050)
– 12V Relay (P/N 93940, 93980)
– Pressure Switches (P/N 90100, 90101, 90102)
– Pressure Switches with Relay (P/N 90110, 90111)
– Sealed Pressure Switches (P/N 90217, 90223, 90227)


PERFORMANCE DATA
PSI CFM A BAR LPM A
0 2.95 16 0 85.0 15
10 2.38 18 1.0 66.0 19
20 2.21 21 2.0 62.0 23
30 2.12 23 3.0 58.0 25
40 2.03 25 4.0 53.0 27
50 1.92 26 5.0 49.0 27
60 1.80 27 6.0 44.0 28
70 1.69 28 7.0 40.0 28
80 1.58 28 8.0 37.0 28
90 1.47 28 9.0 34.0 28
100 1.34 28 10.0 31.0 27
110 1.28 28
120 1.17 27
130 1.12 27
140 1.02 27
150 0.95 27
* Supply Voltage: 13.8 Volts

FILL RATES

2.5 GALLON TANK FILL RATE
0 to 105 PSI 1 min. 27 sec. (± 05 sec.)
85 to 105 PSI 21 sec. (± 03 sec.)
0 to 145 PSI 2 min. 20 sec. (± 05 sec.)
110 to 145 PSI 48 sec. (± 03 sec.)

5.0 GALLON TANK FILL RATE
0 to 105 PSI 2 min. 55 sec. (± 10 sec.)
85 to 105 PSI 45 sec. (± 05 sec.)
0 to 145 PSI 4 min. 50 sec. (± 10 sec.)
110 to 145 PSI 1 min. 40 sec. (± 05 sec.)
