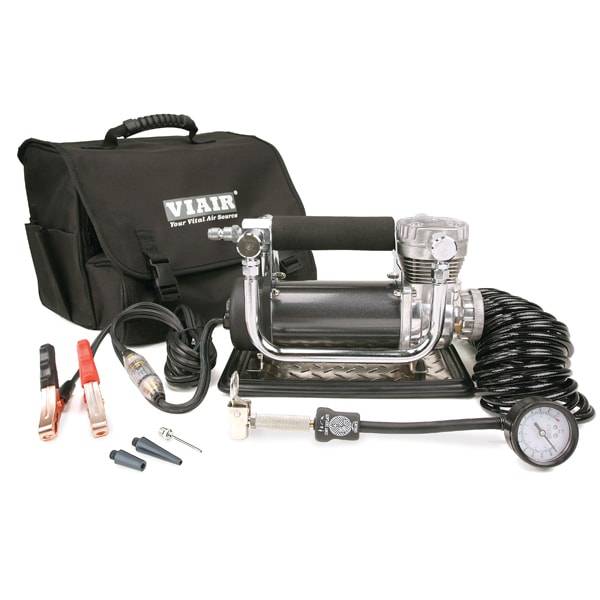

Viair 440P Portable Compressor Kit (12V, CE, 33% Duty, 150 PSI, 30 Min. @ 30 PSI) - 44043

440P is the ultimate portable compressor kit. It can inflate a 37-inch tire from 0 to 30 PSI in less than 5 minutes. The 440P is the largest and most powerful portable compressor kit available today.

Please Note: The 440P does not work with Presta bicycle valves.

FEATURES
Vibration-Resistant Diamond-Plate Sand Tray
– 5-in-1 Inflator/Deflator Air Hose with Inline 120 PSI Gauge
– Deluxe Dual Compartment Carry Bag
– 50-amp Inline Fuse Holder
– Dual Battery Clamps
– 3 pc. Inflation Tips Kit
–
–
–
–


SPECIFICATIONS
– 12-Volt
– Permanent Magnetic Motor
– Duty Cycle: 33% @ 100 PSI
– Max. Working Pressure: 150 PSI
– Max. Amp Draw: 44 Amps
– Ingress Protection Rating: IP54
– Dimensions: 10.87?L x 5.83?W x 6.54?H
– Net Weight: 12.65 lbs.
– Power Cord Length: 8 ft.
– Air Hose Length: 25 ft.


PERFORMANCE DATA
PSI CFM A BAR LPM A
0 3.00 34 0 85.0 34
10 2.79 36 1.0 74.3 37
20 2.42 38 2.0 65.5 40
30 2.30 40 3.0 58.9 41
40 2.12 41 4.0 53.1 43
50 2.01 42 5.0 47.1 44
60 1.84 43 6.0 41.6 42
70 1.71 44 7.0 36.9 41
80 1.53 43 8.0 31.6 39
90 1.44 42 9.0 27.3 38
100 1.32 41 10.0 22.7 36
110 1.18 40
120 1.07 39
130 0.97 38
140 0.85 36
150 0.75 35
* Supply Voltage: 13.8 Volts

FILL RATES

35? X 12.5? FILL RATE
0 to 30 PSI 4 min. 30 sec. (± 10 sec.)
15 to 30 PSI 2 min. 15 sec. (± 05 sec.)

37? X 12.5? FILL RATE
0 to 30 PSI 4 min. 50 sec. (± 10 sec.)
15 to 30 PSI 2 min. 40 sec. (± 05 sec.)
