VIAIR Dual 450C Value Pack (150 PSI, 450C/2, 110/145 P. Switch, 40 Amp Relay/2, CE) *Choose Color* - 45012-45013

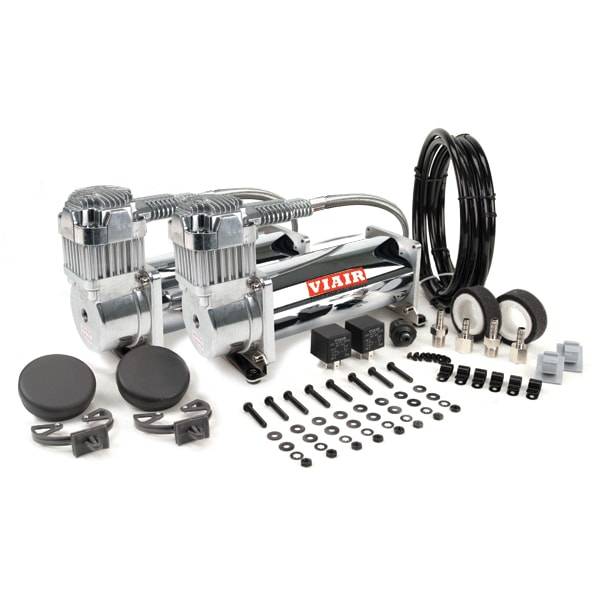

VIAIR’s 450C Dual Performance Value Pack is the “workhorse” of our Dual Performance Value Packs product line. With a 100% duty cycle and up to 150 PSI, the 450C Dual kit provides high performance for any air suspension kit, industrial applications, air horns or off-road mobile pneumatic needs. The 450C Dual Performance Pack kit features two VIAIR 450C Silver or Chrome air compressors, two heavy duty 40-amp relays, an 110 PSI cut-on, 145 PSI cut-off pressure switch and remote mount filter assemblies with mounting hardware.

Note: Use thread sealant for proper installation. Teflon tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lbs.

FEATURES
– (2) 450C (Chrome or Silver) Air Compressors
– (2) Air Filter Assemblies
– (2) Remote Mount Brackets
– (2) Sets of Remote Mount Fittings
– (2) Sets of Spare Air Filter Elements
– (2) Leader Hose Clips
– (6) Air Line Clips with Included Hardware
– (8) Sets of Nuts, Bolts, Washers and Lock Washers
– (2) 40-Amp Relays
– (1) One Heavy Duty Pressure Switch (110 PSI on, 145 PSI off)
– (2) Stainless Steel Braided Leader Hoses with Inline Check Valve
– Air Line (For Remote Mount Filter Installation)

SPECIFICATIONS
– 12-Volt
– Permanent Magnetic Motor
– Duty Cycle: 100% @ 100 PSI
– Max. Working Pressure: 150 PSI
– Max. Air Tank Size: 10.0 Gallon
– Max. 12V Amp Draw: 44 Amps
– Ingress Protection Rating: IP67
– Dimensions: 10.6?L x 4?W x 6.87?H (Each Unit)
– Net Weight: 21.60 lbs.
–
PERFORMANCE DATA
PSI CFM A BAR LPM A
0 3.28 28 0 93.0 28
10 3.04 29 1.0 83.0 30
20 2.79 32 2.0 75.4 34
30 2.65 34 3.0 71.0 37
40 2.54 36 4.0 66.6 40
50 2.44 38 5.0 61.0 41
60 2.33 40 6.0 56.0 42
70 2.19 41 7.0 52.0 44
80 2.05 42 8.0 47.0 43
90 1.94 43 9.0 42.3 42
100 1.85 44 10.0 37.5 41
110 1.72 44
120 1.62 43
130 1.50 42
140 1.38 41
150 1.27 41
* Supply Voltage: 13.8 Volts

FILL RATES

2.0 GALLON TANK FILL RATE
0 to 145 PSI 1 min. 13 sec. (± 05 sec.)
110 to 145 PSI 23 sec. (± 03 sec.)

2.5 GALLON TANK FILL RATE
0 to 145 PSI 1 min. 30 sec. (± 05 sec.)
110 to 145 PSI 31 sec. (± 03 sec.)

5.0 GALLON TANK FILL RATE
0 to 145 PSI 3 min. 10 sec. (± 10 sec.)
110 to 145 PSI 1 min. 05 sec. (± 05 sec.)
