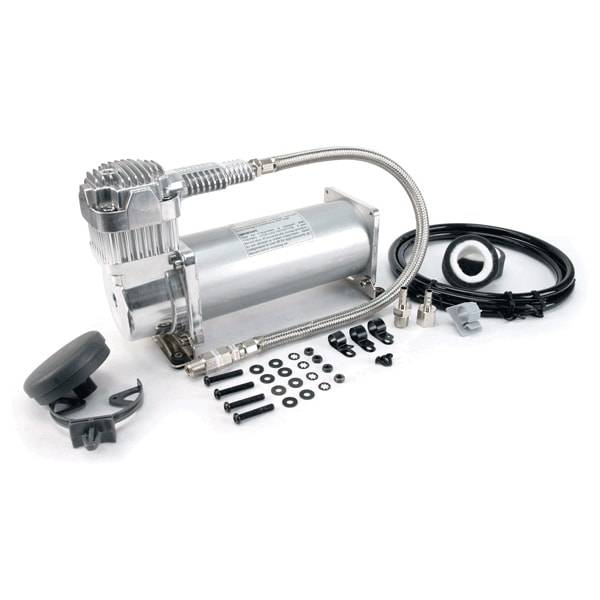

VIAIR 450C Compressor Kit (12V, CE, 100% Duty / Sealed) - 45040

450C is a continuous duty cycle compressor. Features include a standard 1/4” NPT stainless steel braided leader hose with inline check valve and insulated wiring for simple installation.

Note: Use thread sealant for proper installation. Teflon tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lbs.



FEATURES
– Check Valve
– Vibration Isolators
– Mounting Hardware
– Stainless Steel Braided Leader Hose
– Air Line for Remote Mount Air Filter
– Remote Mount Air Filter Assembly
– (2) Replacement Air Filter Elements
– Installation Instructions
–
SPECIFICATIONS
– 12-Volt
– Permanent Magnetic Motor
– Duty Cycle: 100% @ 100 PSI
– Max. Working Pressure: 150 PSI
– Max. Air Tank Size: 5.0 Gallon
– Max. 12V Amp Draw: 23 Amps
– Ingress Protection Rating: IP67
– Dimensions: 10.6?L x 4?W x 6.87?H
– Net Weight: 10.80 lbs.
RECOMMENDED COMPONENTS
– 0.5 Gallon Tank (P/N 91005)
– 1.0 Gallon Tank (P/N 91010)
– 2.0 Gallon Tank (P/N 91022)
– 2.5 Gallon Tank (P/N 91025)
– 5.0 Gallon Tank (P/N 91050)
– 12V Relay (P/N 93940, 93980)
– Pressure Switches (P/N 90100, 90101, 90102)
– Pressure Switches with Relay (P/N 90110, 90111)
– Sealed Pressure Switches (P/N 90217, 90223, 90227)


PERFORMANCE DATA
PSI CFM A BAR LPM A
0 1.80 12 0 51.0 12
10 1.75 14 1.0 47.6 15
20 1.60 16 2.0 43.3 17
30 1.52 17 3.0 38.2 18
40 1.39 18 4.0 34.0 19
50 1.27 19 5.0 30.5 20
60 1.18 19 6.0 28.1 21
70 1.09 20 7.0 26.4 22
80 1.04 20 8.0 25.0 23
90 0.97 21 9.0 23.0 22
100 0.94 22 10.0 21.0 21
110 0.90 23
120 0.86 23
130 0.81 22
140 0.76 21
150 0.72 20
* Supply Voltage: 13.8 Volts


FILL RATES

2.5 GALLON TANK FILL RATE
0 to 105 PSI 1 min. 55 sec. (± 10 sec.)
85 to 105 PSI 28 sec. (± 05 sec.)
0 to 145 PSI 3 min. 02 sec. (± 10 sec.)
110 to 145 PSI 59 sec. (± 05 sec.)

5.0 GALLON TANK FILL RATE
0 to 105 PSI 4 min. 00 sec. (± 10 sec.)
85 to 105 PSI 58 sec. (± 05 sec.)
0 to 145 PSI 6 min. 25 sec. (± 15 sec.)
110 to 145 PSI 2 min. 11 sec.(± 10 sec.)
