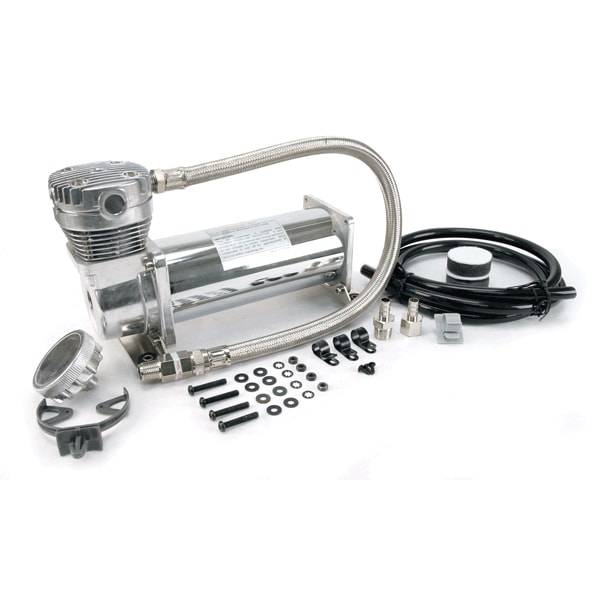

VIAIR 460C Chrome Compressor Kit, 3/8" Port (12V, CE, 100% Duty / Sealed) - 46043

460C features include horizontal cooling fins and a trapezoidal head design, a standard 3/8” NPT stainless steel braided leader hose with inline check valve and insulated wiring for simple installation.

Note: Use thread sealant for proper installation. Teflon tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lbs.



FEATURES
– Check Valve
– Vibration Isolators
– Mounting Hardware
– Stainless Steel Braided Leader Hose
– Air Line for Remote Mount Air Filter
– Remote Mount Air Filter Assembly
– (2) Replacement Air Filter Elements
– Installation Instructions
–
SPECIFICATIONS
– 12-Volt
– Permanent Magnetic Motor
– Duty Cycle: 100% @ 100 PSI
– Max. Working Pressure: 150 PSI
– Max. Air Tank Size: 5.0 Gallon
– Max. 12V Amp Draw: 24 Amps
– Ingress Protection Rating: IP67
– Dimensions: 11.5?L x 4.3?W x 6.5?H
– Net Weight: 11.10 lbs.

RECOMMENDED COMPONENTS
– 0.5 Gallon Tank (P/N 91005)
– 1.0 Gallon Tank (P/N 91010)
– 2.0 Gallon Tank (P/N 91022)
– 2.5 Gallon Tank (P/N 91025)
– 5.0 Gallon Tank (P/N 91050)
– 12V Relay (P/N 93940, 93980)
– Pressure Switches (P/N 90100, 90101, 90102)
– Pressure Switches with Relay (P/N 90110, 90111)
– Sealed Pressure Switches (P/N 90217, 90223, 90227)
