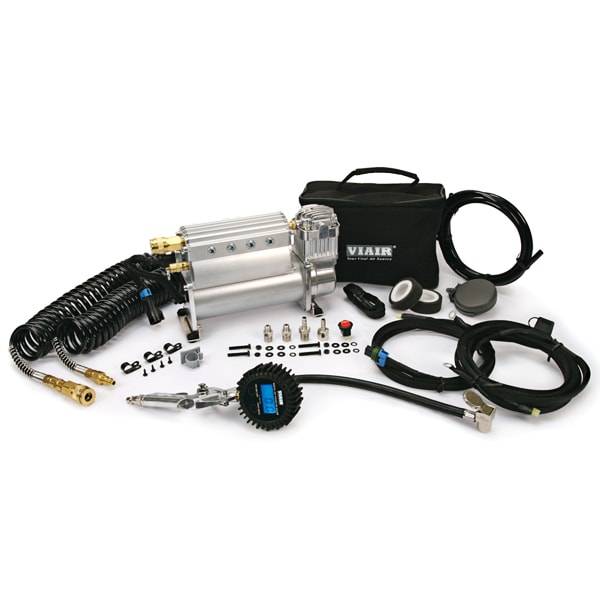

VIAIR UNIVERSAL CONSTANT DUTY ADA / AUTOMATIC DEPLOYMENT SYSTEM WITH 450C COMPRESSOR - 45055

Using a 100% (Constant Duty) duty cycle 450C compressor, tire inflation or air locker actuation is made possible in a very compact space. Each ADA System comes complete with an onboard pressure switch, automatic coupler and a Digital Tire Inflation Kit. Additionally, a wiring harness is included to make the installation a plug & play process, with very little install time required.

FEATURES
– 450C Compressor
– Extruded Aluminum Air Tank (12-port)
– Toggle Switch
– Air Line for Remote Mount Air Filter Installation
– (2) Remote Mount Air Filter Relocation Fittings
– 1/8” NPT Drain Cock
– 1/4” NPT Safety Valve
– (8) 1/4” NPT Hex Plug
– 1/4” NPT Sealed Pressure Switch (85/105 PSI)
– (2) 1/4” NPT BSP Adapter
– 1/4” NPT Automatic Coupler

SPECIFICATIONS
– 12-Volt
– Permanent Magnetic Motor
– Duty Cycle: 100% @ 100 PSI
– Max. Working Pressure: 150 PSI
– Max. Amp Draw: 23 Amps
– Ingress Protection Rating: IP67
– Dimensions: 9.38?L x 4?W x 6.75?H
– Net Weight: 12.5 lbs.
–
WIRING HARNESS
– 30-amp Delphi Connector Set
– 60-amp Fuse Holder
– 40-amp Fuse
– (2) 1/4” Ring Terminal
– 5/16” Ring Terminal
– (3) Female Spade Terminal Connector

DIGITAL TIRE INFLATION KIT
– 30’ Inflation Hose with Automatic Couplers
– Digital Tire Inflation Gun
–
PERFORMANCE DATA
PSI CFM A BAR LPM A
0 1.80 12 0 51.0 12
10 1.75 14 1.0 47.6 15
20 1.60 16 2.0 43.3 17
30 1.52 17 3.0 38.2 18
40 1.39 18 4.0 34.0 19
50 1.27 16 5.0 30.5 20
60 1.18 19 6.0 28.1 21
70 1.09 20 7.0 26.4 22
80 1.04 20 8.0 25.0 23
90 0.97 21 9.0 23.0 22
100 0.94 22 10.0 21.0 21
110 0.90 23
120 0.86 23
130 0.81 22
140 0.76 21
150 0.72 20
* Supply Voltage: 13.8 Volts

FILL RATES

33” X 12.5? FILL RATE
0 to 30 PSI 5 min. 30 sec. (± 10 sec.)
15 to 30 PSI 2 min. 50 sec. (± 05 sec.)

35” X 12.5” FILL RATE
0 to 30 PSI 6 min. 55 sec. (± 15 sec.)
15 to 30 PSI 3 min. 30 sec. (± 10 sec.)

37? X 12.5? FILL RATE
0 to 30 PSI 7 min. 56 sec. (± 15 sec.)
15 to 30 PSI 4 min. 09 sec. (± 10 sec.)
