ROUGH COUNTRY 7 INCH LIFT KIT CHEVY/GMC 1500 (14-18)

(0) Reviews: Write first review
RC-22832
Was: $1,099.95
Sale: $999.95
Save: 9%
Save: $100.00

Customize Your Item

- Select Configuration -
 * required
Qty:
Free Shipping

Description

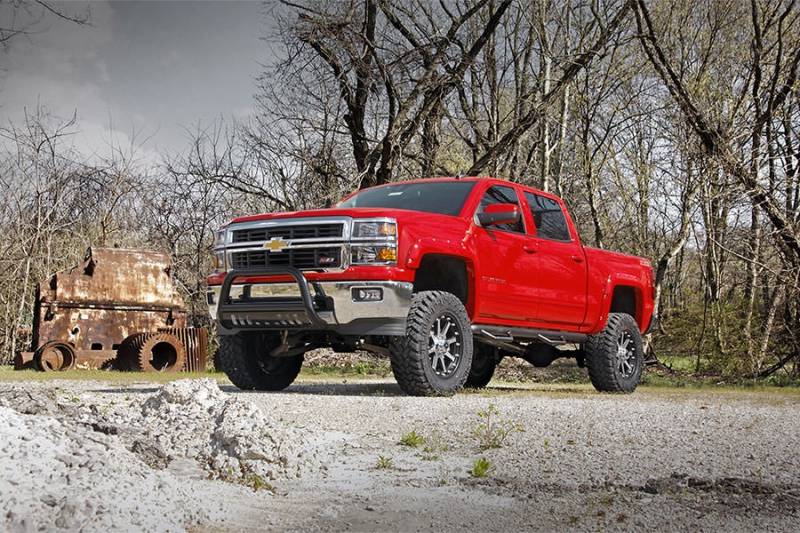

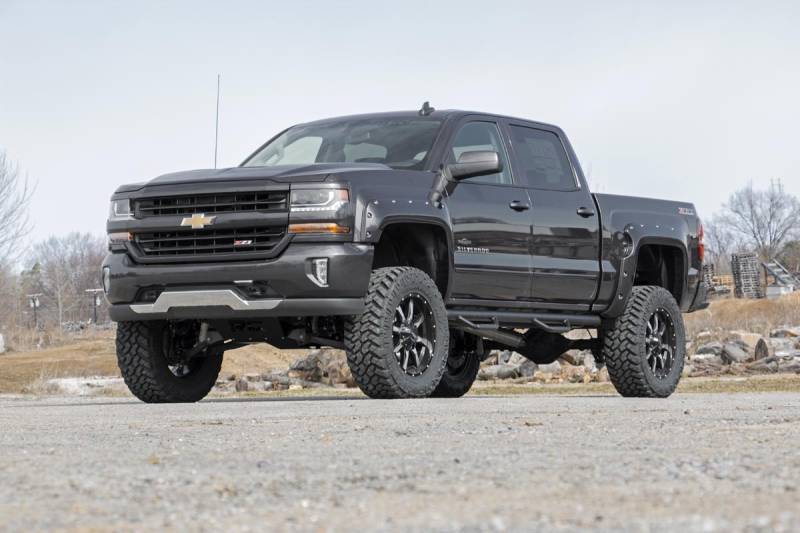

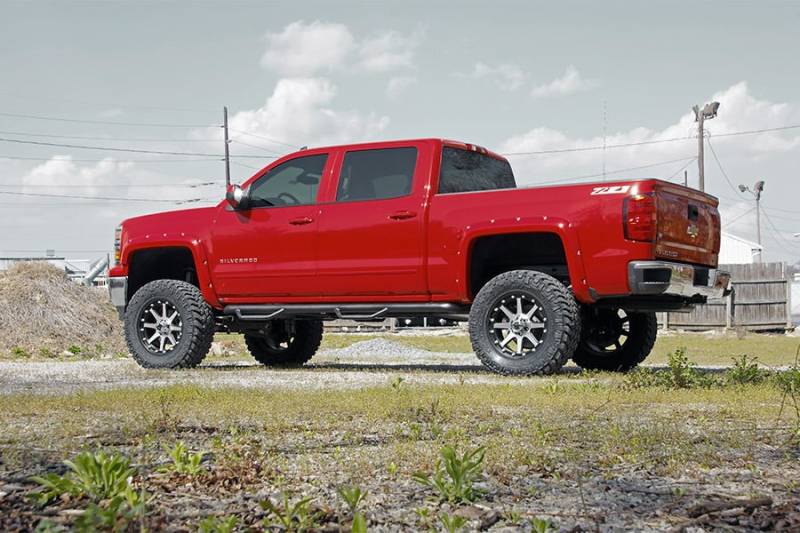

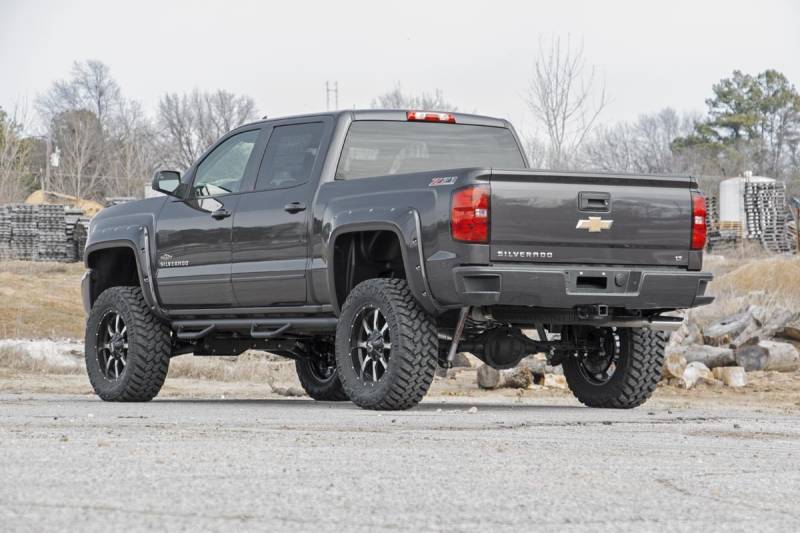

Get the look you really want with Rough Country's 7-inch Suspension Kit for 4WD '14+ Chevy / GMC 1500 Pickups. This massive kit affords your truck the ability to run 35-inch tires on factory wheels with our beefy lifted knuckles and is designed with 100% laser-cut materials for the best possible fit on your vehicle.

Includes a set of front and rear high-clearance cross members featuring the "RC" logo and a differential skid-plate. Each kit also comes with a set of durable, fabricated anti-wrap lift blocks that offer a huge boost while helping prevent axle wrap issues.

Give your pickup an aggressive, lifted and level stance with incredible ride quality! Our innovative Lifted Knuckle design boosts ride height while keeping all components at the optimum angles for a factory-like ride. This kit includes a set of rear N3 Shocks, balanced for on and off-road use. Includes Rough Country's Lifetime Replacement Warranty.

FEATURES

    • Can run factory 20-inch wheels.
    • Provides highly sought level stance.
    • High clearance crossmember design gives unmatched ground clearance.
    • 100% precision laser cut materials using the latest computer aided design process.
    • Fabricated blocks are stronger and offer a longer lifespan than cast blocks.
    • Specially designed anti-axle wrap rear blocks maintain stock ride quality while eliminating common lift block problem.
    • Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.

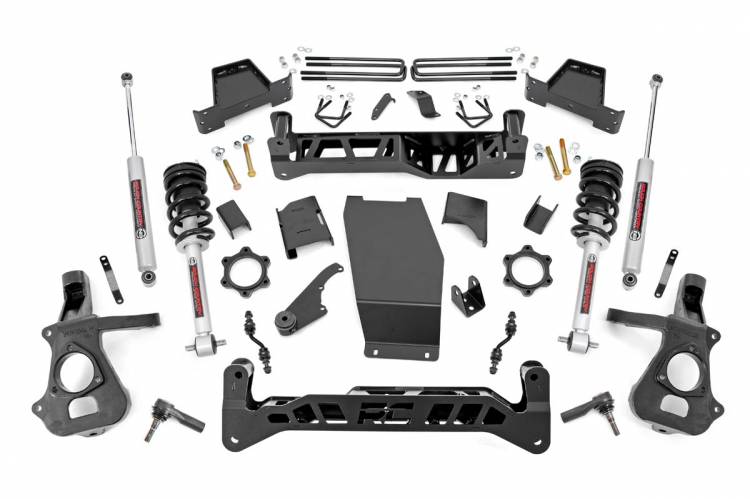

OPTIONAL N3 LOADED STRUTS



  • Includes pre-loaded coil
  • Maintains smooth, factory-like ride
  • Increased ground clearance
  • Engineered for lifted applications
  • Infinitely Variable Damping
  • Leak-proof piston seal
  • Massive 1 3/8in Bore
  • Silver powder coat finish
  • 3-year Manufacturer's Warranty

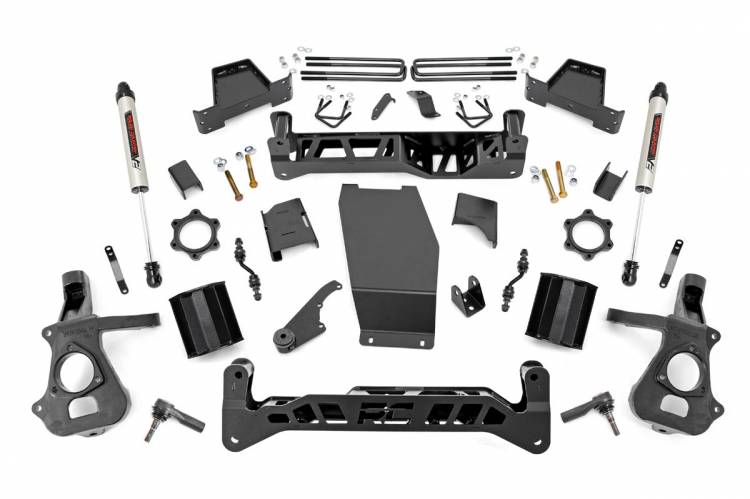

OPTIONAL V2 MONOTUBE SHOCKS



  • Monotube design
  • Internal floating piston
  • Nitrogen-charged
  • 46mm high-flow piston
  • Fast heat dissipation
  • 36kN Tensile Strength
  • Mounts inverted
  • T6061 brushed aluminum body
  • 3-year Manufacturer's Warranty

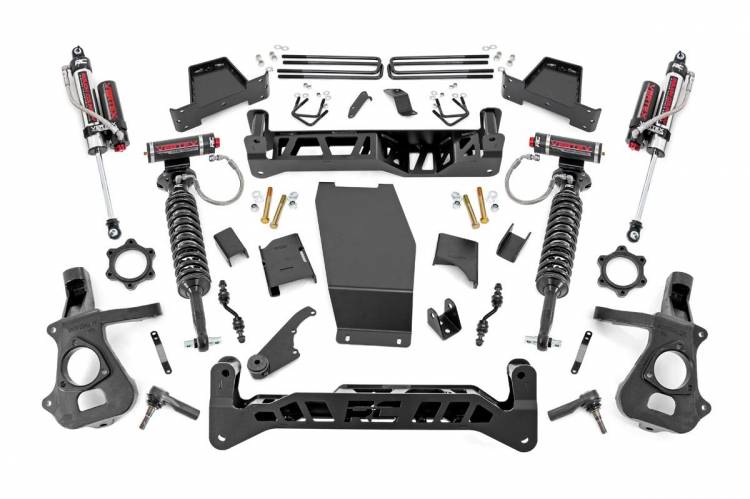

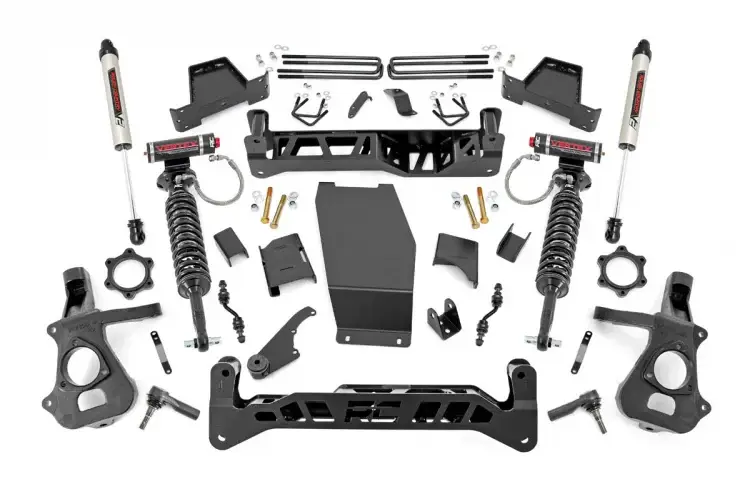

OPTIONAL VERTEX



  • 8-Stage Adjustable Damping
  • Monotube Design
  • Nitrogen-charged
  • Massive 2.5in Piston
  • 22mm Chrome-Hardened Piston Rod
  • 3-Stage Seal System
  • Heat-Treated, Alloy Bearing
  • Honed Steel Body
  • 3-year Manufacturer's Warranty



NOTES - IMPORTANT

  • IMPORTANT! - Installation of larger tires will require Rough Country's Speedometer Calibrator SKU: 90019T.
  • Does not fit Hybrid eAssist models
  • Requires 18" or larger wheels.
  • Requires cutting and drilling.
  • Must know if Stock Control Arms are Cast Aluminum, Cast Steel, or Stamped Steel
  • 2016 models with stock stamped control arms only receive 7 inches of front lift
  • Does NOT fit GMC Denali models with Magnetic Ride Control.
  • If wider than 35x12.50 R20 tires are used, offset wheels will be required and trimming may be required.
  • Please view installation instructions for complete information on proper tire/wheel combinations.
  • If truck is equipped with a mass damper on the front differential, the damper must be removed.

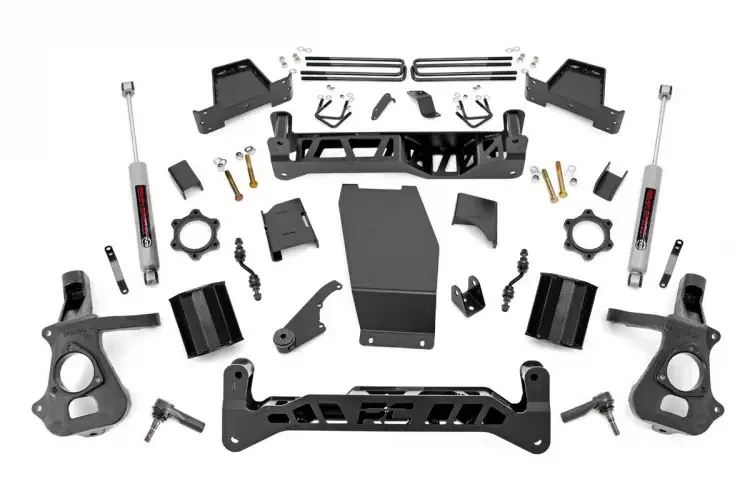

FRONT
  • Lifted knuckles
  • Front crossmember
  • Rear crossmember
  • Upper strut spacers
  • Replacement Tie rod ends
  • CV spacers
  • Differential drop brackets
  • Differential skid plate
  • Sway-bar drop brackets
  • Hardware
REAR
  • Fabricated anti-wrap lift blocks
  • Brake line brackets
  • U-bolts
  • Hardware
SHOCKS
  • (2) Rear Premium N3 series
Est. Install Time 8-10 hours
2014-2018 4WD Chevy Silverado 1500
2014-2018 4WD GMC Sierra 1500
295/70R18 Factory 18 6x5.5 - 0.25" Spacer
35x12.50R18 18x9 6x5.5 +0 -
35x12.50R18 18x9 6x5.5 +1 -
35x12.50R18 18x9 6x5.5 -12 -
35x12.50R20 20x9 6x5.5 +0 -
35x12.50R20 20x9 6x5.5 +1 -
35x12.50R20 20x9 6x5.5 -12 -
35x12.50R20 Factory 20 6x5.5 - 0.25" Spacer
