ROUGH COUNTRY 3.5 INCH LIFT KIT RAM 1500 2WD/4WD (2019-2022)

RC-31430
Pricing: $649.95

Customize Your Item

- Select Configuration -
 * required
Qty:
Free Shipping

Description

Rough Country's 3.5in Bolt-on kit offers easy installation and aggressive good looks at an incredible value. Take your truck to new heights with this excellent option for RAM 1500 pickups.

This kit features a set of high-quality, forged aluminum upper control arms designed to make alignment adjustments easier and Clevite rubber bushings for enhanced durability. These arms are designed to promote a factory-like geometry by keeping the ball joint at optimum angles after lifting. This design allows for an improved, greater range of motion from the ball-joint, with less stress, wear and tear.

Rough Country’s 3.5” Bolt-on Kit features a set of durable front and rear spacers to provide additional ground clearance. Once installed, this kit gives your truck plenty of ride height for up to 295/60R20 tires while offering a clean, level look from front to rear. This kit also features Rough Country’s Nitrogen-charged N3 Shocks for a fantastic blend of off-road action and smooth highway ride quality!

This all-inclusive kit comes with everything you need, and installation is a piece of cake compared to other kits on the market! Featuring a 100% bolt-on installation process that requires zero cutting or drilling, this kit can be installed using common tools in a home garage, and allows the truck to be returned to stock at any time if so desired. Best of all this kit features Rough Country’s Lifetime Replacement Warranty.

FEATURES

    • Easy Bolt-On installation
    • No Cutting or Drilling required!
    • Includes New forged aluminum upper control arms
    • Control arms include POM ball joints for greater range of motion and easier installation
    • Ball joints are pre-installed to ease installation
    • Increased ground clearance
    • Levels the front and rear of the truck
    • Can be returned to stock
    • Fits Rebel Models

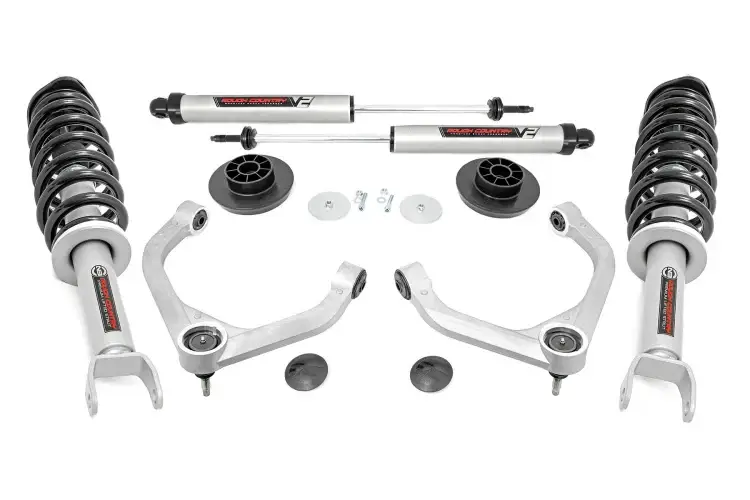

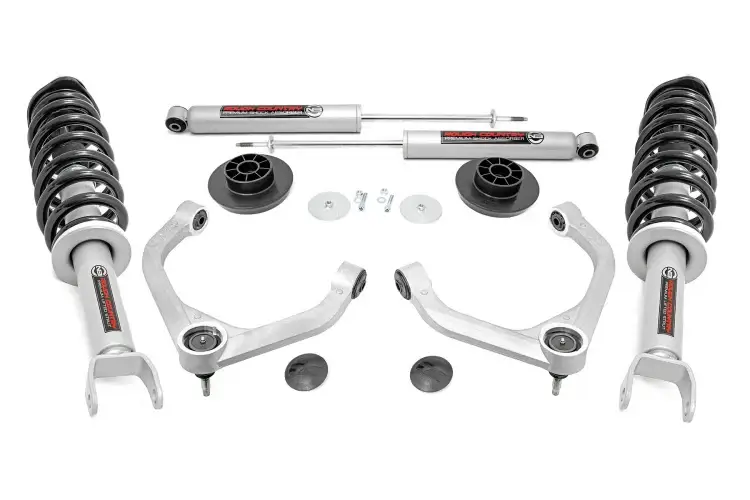

OPTIONAL N3 LOADED STRUTS



  • Includes pre-loaded coil
  • Maintains smooth, factory-like ride
  • Increased ground clearance
  • Engineered for lifted applications
  • Infinitely Variable Damping
  • Leak-proof piston seal
  • Massive 1 3/8in Bore
  • Silver powder coat finish
  • 3-year Manufacturer's Warranty

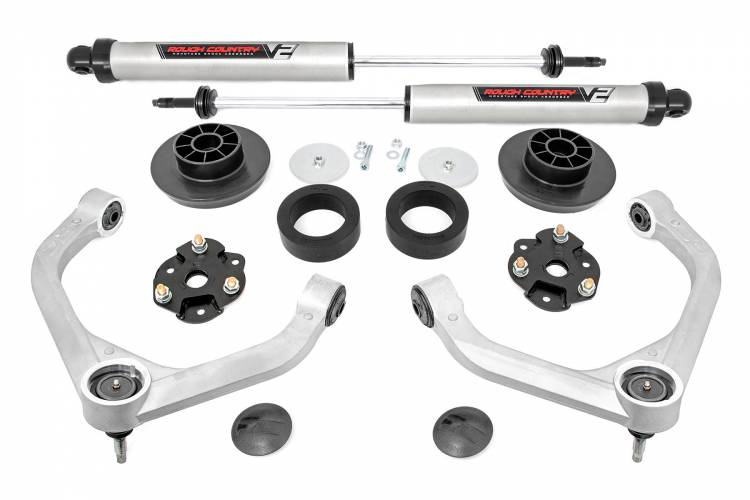

OPTIONAL V2 MONOTUBE SHOCKS



  • Monotube design
  • Internal floating piston
  • Nitrogen-charged
  • 46mm high-flow piston
  • Fast heat dissipation
  • 36kN Tensile Strength
  • Mounts inverted
  • T6061 brushed aluminum body
  • 3-year Manufacturer's Warranty



NOTES - IMPORTANT

  • Replacement N3 Struts do NOT fit V6 models.
  • Does NOT fit "TRX" models.
  • Does NOT fit models with factory air ride suspension.

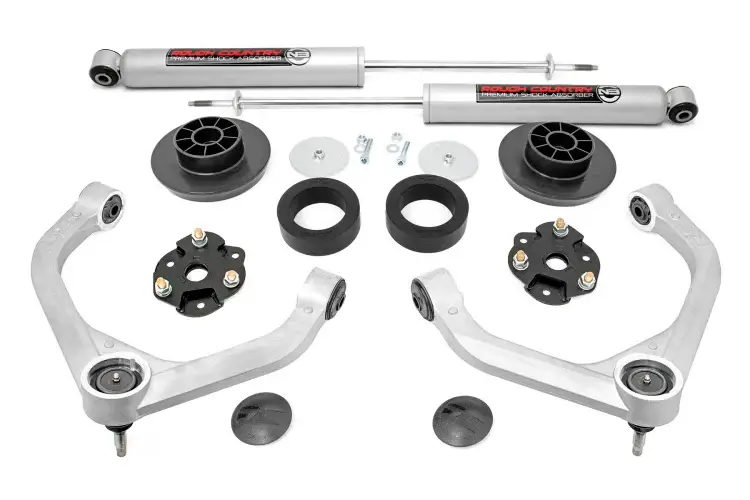

FRONT
  • (2) Forged aluminum upper control arms
  • (2) Strut preload spacers
  • (2) Strut spacers
REAR
  • (2) Coil spacers
  • Hardware
SHOCKS
  • (2) Rear - N3 Premium Shocks
Est. Install Time 5-6 hours
2019-2022 2WD Ram 1500
2019-2022 4WD Ram 1500
295/60R20 Factory 6x5.5 - 0.25" Spacer
33x12.50R20 20x9 6x5.5 -12 -
33x12.50R20 20x9 6x5.5 +0 -
33x12.50R20 20x9 6x5.5 +1 -
33x12.50R20 20x9 6x5.5 +18 -
33x12.50R20 20x9 6x5.5 +20 -
305/55R20 20x9 6x5.5 -12 -
305/55R20 20x9 6x5.5 +0 -
305/55R20 20x9 6x5.5 +1 -
305/55R20 20x9 6x5.5 +18 -
305/55R20 20x9 6x5.5 +20 -
33x12.50R20 20x10 6x5.5 +0 -
33x12.50R20 20x10 6x5.5 +1 -
305/55R20 20x9 6x5.5 +0 -
305/55R20 20x9 6x5.5 +1 -
33x12.50R22 22x10 6x5.5 -25 Trimming Required
33x12.50R22 22x10 6x5.5 -24 Trimming Required
33x12.50R22 22x10 6x5.5 -19 Trimming Required
33x12.50R22 22x10 6x5.5 -18 Trimming Required
33x12.50R18 18x9 6x5.5 -12 -
33x12.50R18 18x9 6x5.5 +0 -
33x12.50R18 18x9 6x5.5 +1 -
33x12.50R18 18x9 6x5.5 +18 -
33x12.50R18 18x9 6x5.5 +20 -
33x12.50R18 18x10 6x5.5 +0 -
33x12.50R18 18x10 6x5.5 +1 -
