Viair Dual 400C OBA System *Select Color*
V20015/V20016
Not Available
Pricing:
$649.95
Description

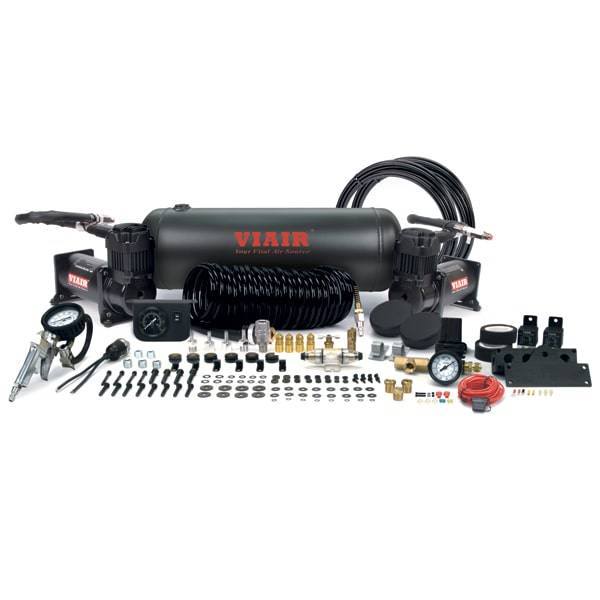

VIAIR’s Dual 400C Onboard Air System is a pre-packaged compressed air solution that provides two 400C, 33% duty cycle compressors, a 2.0 gallon air tank, an inline pressure regulator, and all necessary components needed to install a working system, useful for multiple pneumatic applications.
Please Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8″ is 10 ~ 11 ft. lbs. Recommended torque for 1/4″ and 3/8″ is 12 ~ 15 ft. lbs.
| FEATURES |
|---|
| – 2.0 Gallon 150 PSI VIAIR Air Tank |
| – (2) 400C VIAIR (Chrome or Stealth Black) Compressors w/Thermal Overload Protectors |
| – 30ft. Coil Hose with Quick Connects (20015) or |
| – 30ft. Black Sleeved Inside Braided Coil Hose (20016) |
| – Tire Inflation Gun with 200 PSI Gauge |
| – 0-220 PSI Pressure Regulator |
| – Sealed Pressure Switch (110 PSI on, 145 PSI off) |
| – 150 PSI Illuminated Dash Panel Gauge |
| – (2) 40-amp Relays |
| – Inline Fuse Holder |
| – 1/4” Quick Connect Coupler (M) |
| – 1/4” 175 PSI Safety Valve |
| – 1/4” Drain Cock |
| – (2) 1/8” BSP to 1/4” NPT |
| – (3) 1/4” Compression Fittings |
| – 5 Pc. 1/4” NPT Plugs Kit |
| – 6-Port Billet Manifold with Mounting Bracket (1/4”) |
| – (2) 20ft. 1/4” Air Line Included |
| – Electrical Connections |
| SPECIFICATIONS |
|---|
| – 12-Volt |
| – Permanent Magnetic Motor |
| – Duty Cycle: 33% @ 100 PSI |
| – Max. Working Pressure: 150 PSI |
| – Max. Amp Draw: 60 Amps |
| – Ingress Protection Rating: IP67 |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
All Fittings are NPT rated unless otherwise noted.
Wiring harness NOT included.
PERFORMANCE DATA
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 4.55 | 39 | 0 | 129.0 | 39 |
| 10 | 4.18 | 40 | 1.0 | 115.6 | 41 |
| 20 | 3.96 | 42 | 2.0 | 106.5 | 45 |
| 30 | 3.74 | 45 | 3.0 | 96.6 | 47 |
| 40 | 3.50 | 46 | 4.0 | 86.4 | 50 |
| 50 | 3.25 | 48 | 5.0 | 78.4 | 53 |
| 60 | 3.00 | 50 | 6.0 | 70.8 | 58 |
| 70 | 2.83 | 52 | 7.0 | 64.0 | 57 |
| 80 | 2.60 | 55 | 8.0 | 57.5 | 54 |
| 90 | 2.46 | 59 | 9.0 | 50.6 | 52 |
| 100 | 2.28 | 57 | 10.0 | 43.7 | 50 |
| 110 | 2.12 | 55 | |||
| 120 | 1.97 | 53 | |||
| 130 | 1.80 | 52 | |||
| 140 | 1.60 | 51 | |||
| 150 | 1.48 | 49 | |||
* Supply Voltage: 13.8 Volts
FILL RATES
| 2.0 GALLON TANK | FILL RATE |
|---|---|
| 0 to 145 PSI | 1 min. 00 sec.(± 05 sec.) |
| 110 to 145 PSI | 20 sec. (± 03 sec.) |
| 37″ X 12.5″ | FILL RATE |
| 0 to 30 PSI | 3 min. 25 sec. (± 10 sec.) |
| 15 to 30 PSI | 1 min. 40 sec. (± 05 sec.) |
| 40″ X 15.5″ | FILL RATE |
| 0 to 30 PSI | 3 min. 35 sec. (± 10 sec.) |
| 15 to 30 PSI | 1 min. 45 sec. (± 05 sec.) |
